Overview

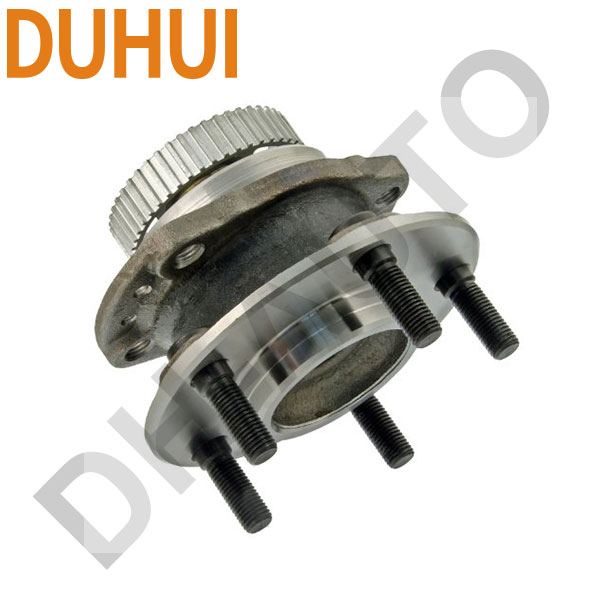

Wheel Hub 512156 supplied by DUHUI Bearing. Listed under Roller Bearings. Key published specifications: DH Code DWH1066; Product Type Wheel Hub Assembly; Installation Location Rear Axle; Kit Contents Hub × 1. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

DH Code	DWH1066
Product Type	Wheel Hub Assembly
Installation Location	Rear Axle
Kit Contents	Hub × 1
Flange Diameter	140.00 mm (5.510 inch)
Bolt Circle Diameter	114.30 mm (4.500 inch)
Wheel Pilot Diameter	71.40 mm (2.810 inch)
Brake Pilot Diameter	71.90 mm (2.830 inch)
Flange Offset	48.00 mm (1.890 inch)
Hub Pilot Diameter	86.10 mm (3.390 inch)
Hub Bolt Circle Diameter	106.70 mm (4.200 inch)
Bolt Size	M12 × 1.5
Bolt Hole MET	M12 × 1.5
Flange Shape	Rectangular
ABS Sensor	With integrated tone ring sensor
