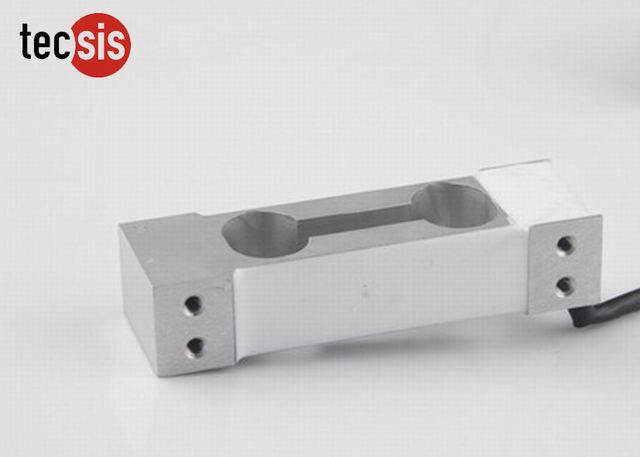

Weighing Scale Beam Force Sensor Load Cell Sensor Of Aluminum Alloy
Model F4802
Overview
Weighing Scale Beam Force Sensor Load Cell Sensor Of Aluminum Alloy supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Single Point Load Cell; Material Aluminum Alloy; Capacity 0.3kg~10kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 0.3kg~10kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 1.0±10%mV/V (0.3~0.5kg) 2.0±10%mV/V (1~10kg) |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø3×450 mm |
| Platform size | 200×200mm |
| Standard | carton |
| Model | F4802 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
