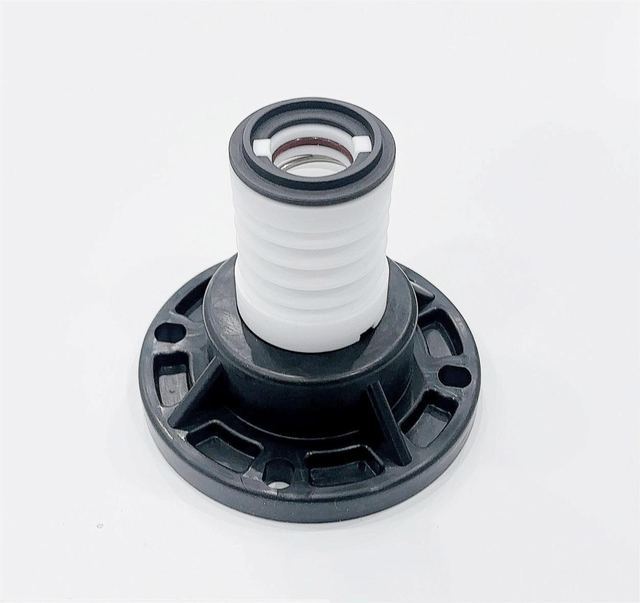

Wb3-25mm PTFE Bellow Mechanical Shaft Seal for Chemical Pump
Model WB3-25
Overview
Wb3-25mm PTFE Bellow Mechanical Shaft Seal for Chemical Pump supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Material TC TC FKM; Function For Oil Pump, Water Pump; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Material | TC TC FKM |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Type | Bellows PTFE Mechanical Seal |
| Size | 25MM |
| Pressure | Up to 0.5 Mpa |
| Speed | Up to 10 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | SIC |
| Seat | SIC |
| Elastomer | PTFE |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Temperature | -20ºC to +200ºC |
| Materials | Rotary Ring Face: Carbon/SiC |
| Performance Capabilities | Temperature |
| Industrial Standards | Non-standard |
