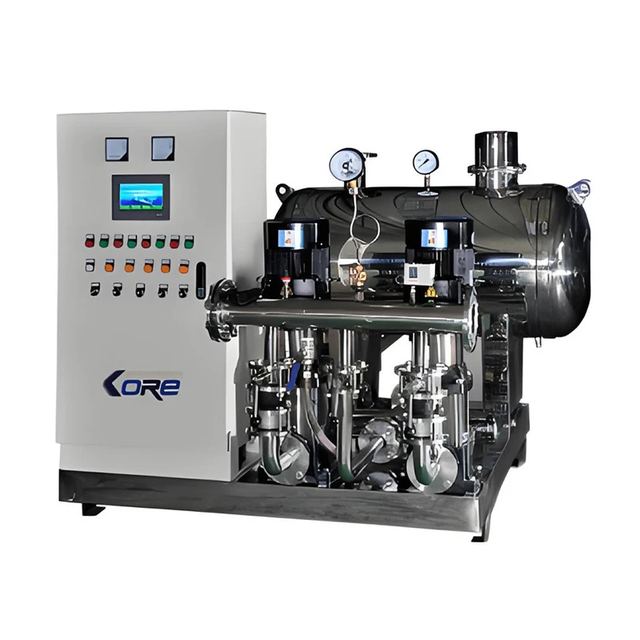

Water Supply Equipment
Overview
Water Supply Equipment supplied by Shanghai Kelei Fluid Automatic Control Equipment Manufacturing Co., Ltd. Listed under Water Pumps. Key published specifications: Ambient temperature: 0~40ºC Pressure range: 0~2.5Mpa; Control power: ≤550KW Pressure regulation accuracy: ≤0.01Mpa; Regulator: 0.6Mpa~1.6Mpa Relative humidity: ≤90%(Electronic control section); Inhalation manifold diameter: Dna=150~250mm Discharge manifold diameter: Dna=100~150mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Ambient temperature: 0~40ºC | Pressure range: 0~2.5Mpa |
|---|---|
| Control power: ≤550KW | Pressure regulation accuracy: ≤0.01Mpa |
| Regulator: 0.6Mpa~1.6Mpa | Relative humidity: ≤90%(Electronic control section) |
| Inhalation manifold diameter: Dna=150~250mm | Discharge manifold diameter: Dna=100~150mm |
| Control pump motor power: ≤180KW | Power supply: 380V*(1+10%)*50Hz+2Hz |
| Medium pH: PH=6~8 | Power frequency: 50Hz±2Hz |
| Ambient temperature | 0~40ºC |
| Pressure range | 0~2.5Mpa |
| The main pump head | 22~158M |
| Control power | ≤550KW |
| Pressure regulation accuracy | ≤0.01Mpa |
| Relative humidity | ≤90%(Electronic control section) |
| Inhalation manifold diameter | Dna=150~250mm |
| Discharge manifold diameter | Dna=100~150mm |
| Control pump motor power | ≤180KW |
| Power supply | 380V*(1+10%)*50Hz+2Hz |
| Medium pH | PH=6~8 |
| Power frequency | 50Hz±2Hz |
| Liquid temperature | -15ºC~+110ºC |
| Maximun Ambient temperature | +40ºC |
