Overview

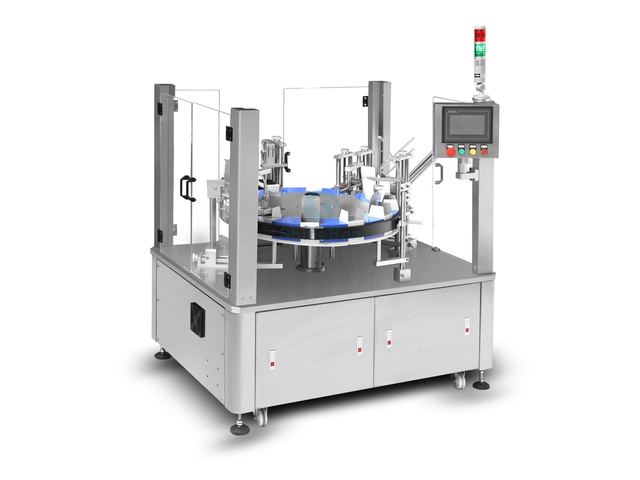

Vertical Rotary Cartoner CMV60 supplied by Shineben Machinery Co., Ltd. Listed under Packaging. Key published specifications: Quality requirement of carton 250-350 g/m3; Size range of use instructions L (100-260) mm*W (100-190) mm; Motor power 0.37kw; Power supply 220V, 50/60Hz, Single phase. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Quality requirement of carton	250-350 g/m3
Size range of use instructions	L (100-260) mm*W (100-190) mm
Motor power	0.37kw
Power supply	220V, 50/60Hz, Single phase
Machine noise	Less than 80dB
Working pressure of compressed air	0.5-0.8 Mpa
Air consumption	226L/min
Machine dimension(L×W×H)	approx. 1698 × 1170 × 1600mm
Machine Weight	approx. 450KG
