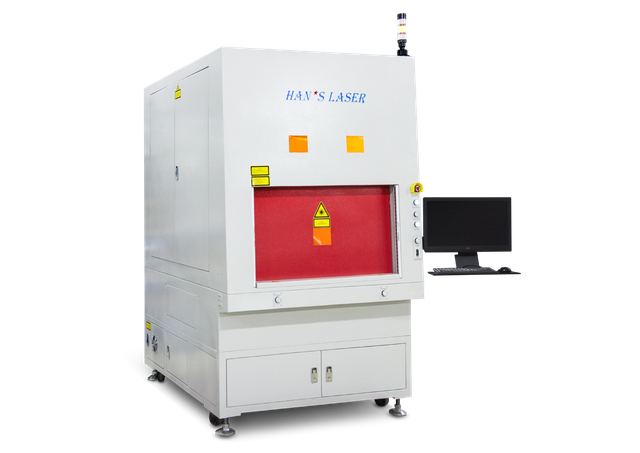

UV Laser De-coating Machine
Overview
UV Laser De-coating Machine supplied by Laser Corporation. Listed under Laser Marking Machines. Key published specifications: Laser Type UV De-coating; Wavelength 355 nm; Min Beam Diameter < 10 µm; Pulse Frequency 10 – 200 kHz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | UV De-coating |
|---|---|
| Wavelength | 355 nm |
| Min Beam Diameter | < 10 µm |
| Pulse Frequency | 10 – 200 kHz |
| Output Power | 4 Watts |
| Repetition Accuracy | ± 0.0001 (0.003mm) |
| Cooling System | Water-cooled |
| Vision System | high-performance CCD camera |
| Operation System | WINDOWS 7 /10 |
| Laser Safety Level | Class I |
| Power Consumed | 2 kW |
| Warranty Coverage | 1- year |
| Laser Safety Compliance | FDA (CDRH) |
| Running Temperature | 15℃-35℃ / 59°-95°F |
