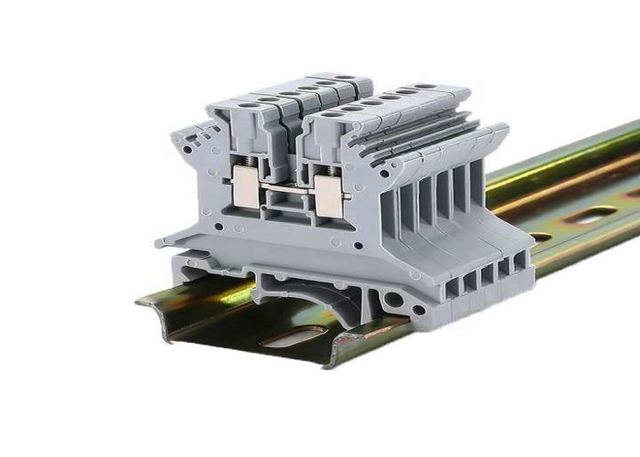

UK Series Din Rail Terminal Block
Overview
UK Series Din Rail Terminal Block supplied by Yueqing Richuang Automation Equipment Co.,Ltd. Listed under Contactors. Key published specifications: Certification CE/CB/CCC; Type Din Rail Terminal Block; Connect Type Screw Terminal; Range 0.14-240m㎡. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE/CB/CCC |
|---|---|
| Type | Din Rail Terminal Block |
| Connect Type | Screw Terminal |
| Range | 0.14-240m㎡ |
| Current | 17.5A-415A |
| Main Circuit Rating Voltage | 220V-600V |
| Voltage | 690V-1000V |
| Housing | PA66,UL94V-0 |
| Pin Header | Brass,Ni Plated |
