Overview

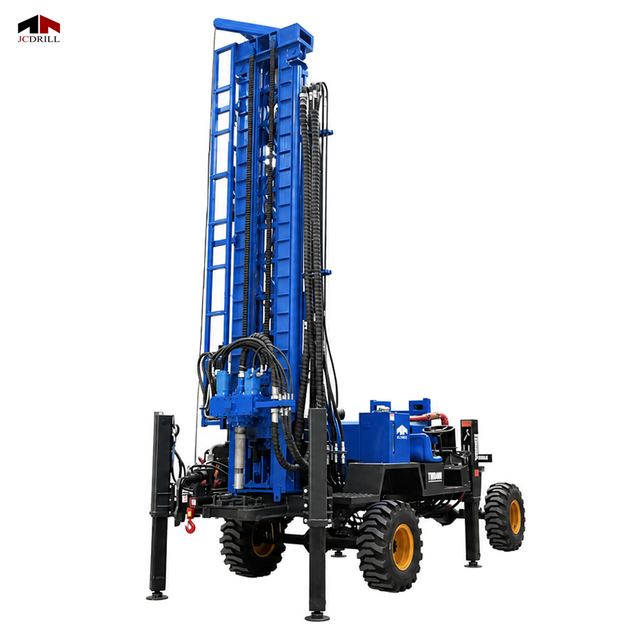

TWD400 400M Hydraulic Water Well Drilling Rig DTH Hammer & Mud Drilling Trailer Mounted supplied by Beijing Jincheng Mining Technology Co., Ltd. Listed under Drilling Rigs. Key published specifications: Type 4-cylinder, water cooling; Rated Power 93 kW; Formation Type Achievable Depth; Medium-hard rock 200 - 300 m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Type	4-cylinder, water cooling
Rated Power	93 kW
Formation Type	Achievable Depth
Medium-hard rock	200 - 300 m
Hard rock formations	150 - 250 m
Configuration	Lead Time
Standard Configuration	7 - 15 days
Custom Configuration	30 - 45 days
Accessories & Spare Parts	3 - 7 days
Certification	ISO,CE
Move Type	Trailer Mounted
Rotation Torque	6900-9000 N.m
Drill Pipe Length	3000mm
Feed Stroke	3400mm
Lifting Force	20ton
Engine Power	93KW
Centralized Control Console	Single-operator control of all functions
93kW YUCHAI Engine	Robust 4-cylinder water-cooled diesel engine
High-Torque Rotary Head	6,900-9,000Nm torque with dual-gear adjustment
400-Meter Depth Rating	20-ton pull-back capacity
Fully Integrated Chassis	No disassembly required for transport
Road-Legal Dimensions	Compliant with highway transportation regulations
Ground Source Heat Pump Boreholes	150-300 meter depth
Engineering Geological Survey	Foundation investigation
