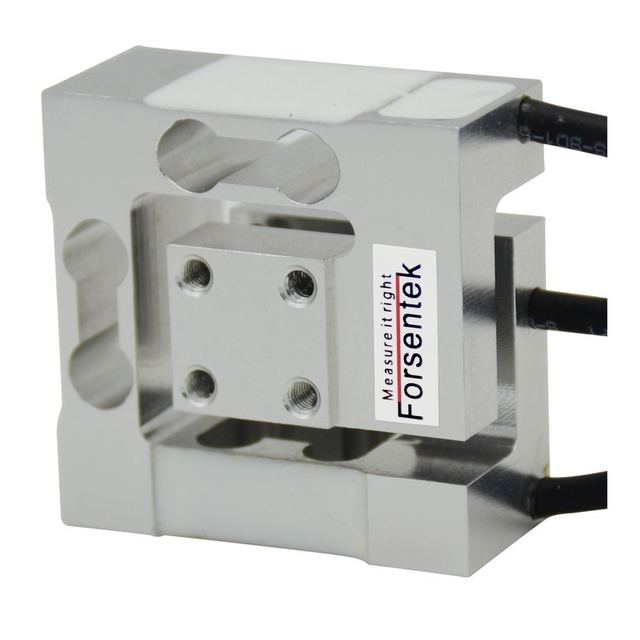

Triaxial Force Sensor 1kg 2kg 5kg 10kg Triaxial Load Cell Transducer
Model FNZ
Overview
Triaxial Force Sensor 1kg 2kg 5kg 10kg Triaxial Load Cell Transducer supplied by Forsentek Co. Limited. Key published specifications: Load Range 10N 20N 50N 100N; Theory Multi Axis Load Cell; Output Analog Sensor; Rated output 1.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load Range | 10N 20N 50N 100N |
|---|---|
| Theory | Multi Axis Load Cell |
| Output | Analog Sensor |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(2min) | ±0.2% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+25 o C |
| Operating temperature | -10...+50 o C |
| Temperature shift zero | ±0.05% R.O./ o C |
| Temperature shift span | ±0.01% R.O./ o C |
| Input resistance | 350±50 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | Ø3*2000mm(for each axis) |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Load Direction | Fx Fy Fz |
