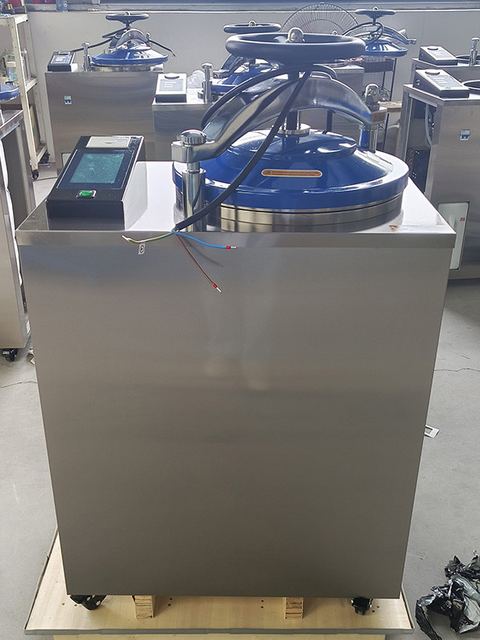

Touch Screen pulse vacuum steam sterilizer 100L Automatic Fault Alarm
Model STV-V100
Overview
Touch Screen pulse vacuum steam sterilizer 100L Automatic Fault Alarm supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 100L; Door Type Handwheel Door; Sterilizing Baskets 2 Pcs Baskets. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 100L |
| Door Type | Handwheel Door |
| Sterilizing Baskets | 2 Pcs Baskets |
| Data Recording | Printer |
| Body Material | Stainless Steel 304 |
| Chamber Size | ∅450*650mm |
| Net Weight | 132kg |
| Working Press. | 0.22Mpa |
| Model | STV-V100 |
| Volume | 100L |
| Power | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø450×650 |
| Bucket dimension | Ø420×540 |
| Basket dimension(optional) | Ø410×300×2 |
| Gross/net weight | 159/132KG |
| Door Structure | Handwheel door |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
