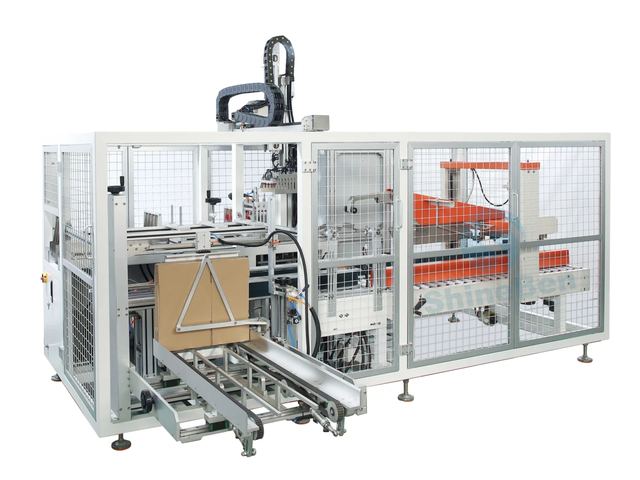

Top Load Case Packer SBM-TLCP600
Model SBM-TLCP600
Overview
Top Load Case Packer SBM-TLCP600, listed by Shineben Machinery Co., Ltd in Guangzhou, Guangdong. Published figures include speed up to 300 cases per hour, case range L500mm, W400mm, H600mm (Maximum) and case material General specification corrugated paper.
Technical specifications
| Speed | up to 300 cases per hour |
|---|---|
| Case Range | L500mm, W400mm, H600mm (Maximum) |
| Case Material | General specification corrugated paper |
| Tape Width | 38mm, 50mm |
| Power consumption | 6.5kw |
| Power supply | AC380V/50Hz |
| Capacity of Case Magazine | 100 Pcs per time |
| Air Pressure | 6kg/cm 3 , 350L/min |
| Dimension | (L)4200*(W)2700*(H)2800mm |
| Machine Weight | 1200kg |
