Overview

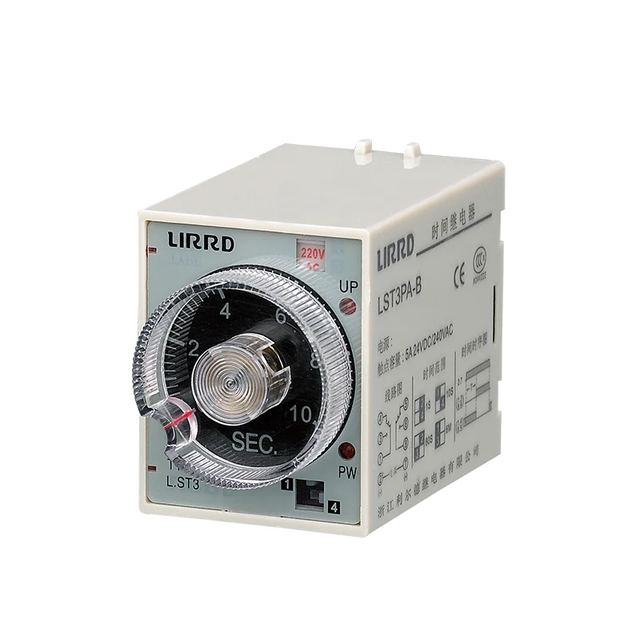

Time Relay LST3PA -B supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Classification Multi Range Time Relay; Dimension(mm) 55.0H * 40.5W * 84.0L; Rated Voltage AC: 110V, 220V, 380V 50/60Hz; Indicator Operating ON, UP Two Indicator. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Classification	Multi Range Time Relay
Dimension(mm)	55.0H * 40.5W * 84.0L
Rated Voltage	AC: 110V, 220V, 380V 50/60Hz
Indicator Operating	ON, UP Two Indicator
Mechanical	5*10 7 times
Repeat Error	±2% max.
Voltage Error	± 5% max.
Temp Error	± 2% max.
Reset Time	0.1sec max.
Power Consumpting	3VA
Ambient Temperature	-10~+50 °C
Ambient Humidity	35~85%RH
Weight	100g
Flush	Y-40 & US-08 or Y-40 & P3G-08
