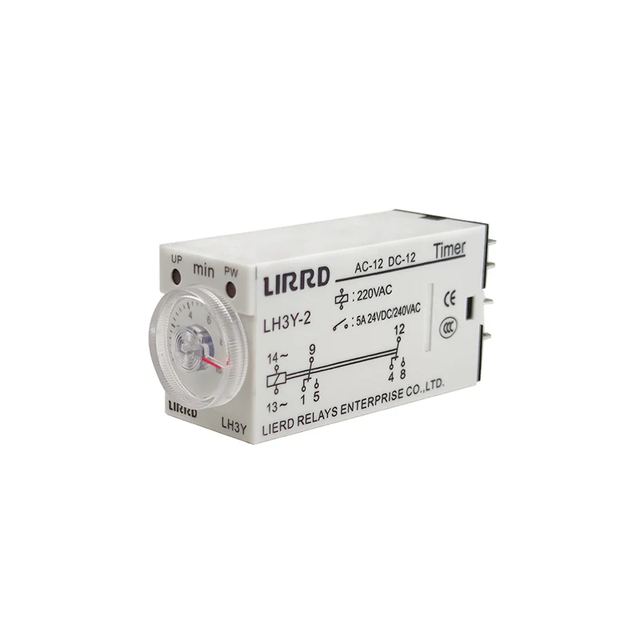

Time Relay LH3Y-2 10S/30S/60S supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Classification Time Relay; Dimension(mm) 28.0H * 21.5W * 63.0L; Full Timing Range SEC:1, 5, 10, 30, 60; Rated Voltage AC: 110V, 220V 50/60Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Classification	Time Relay
Dimension(mm)	28.0H * 21.5W * 63.0L
Full Timing Range	SEC:1, 5, 10, 30, 60
Rated Voltage	AC: 110V, 220V 50/60Hz
Indicator Operating	Power, up
Electrical	10 5 times
Setting Error	±10% max ± 50ms
Voltage Error	± 2% max.
Temp Error	± 5% max.
Reset Time	0.2sec max.
Power Consumpting	3VA
Ambient Temperature	-10~+55 °C
Ambient Humidity	48~85%RH
Weight	45g
Flush	With Y-20 adapter
