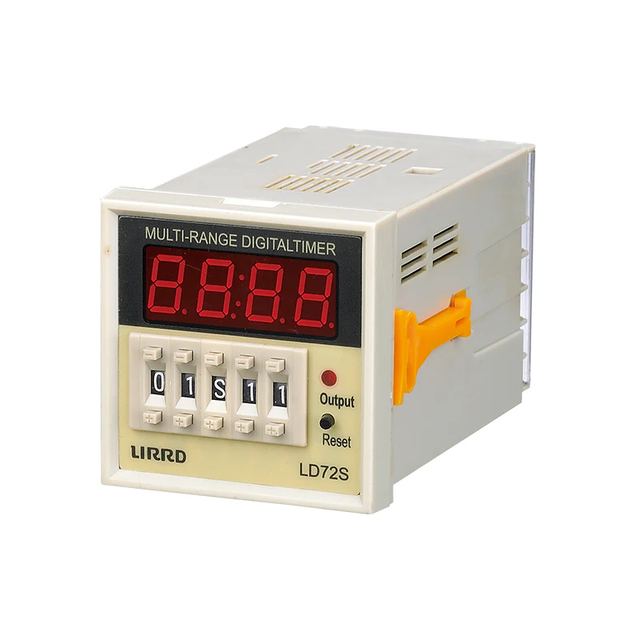

Time Relay LD72S
Overview
Time Relay LD72S, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Published figures include class MultiplexType Preset Time Limit Relay, power consumption Less than 4.5VA and delay multiplying factor 0.01Sec 1Min/Sec 1HR/Min.
Technical specifications
| Class | MultiplexType Preset Time Limit Relay |
|---|---|
| Rated Working Voltage | 85~265VAC/DC input free, other working voltage upon request |
| Power Consumption | Less than 4.5VA |
| Delay multiplying Factor | 0.01Sec 1Min/Sec 1HR/Min |
| Delay Range | 1-9999 Times Delay Multiplying Factor |
| Weight And Outline Dimension | About 150g, 72W* 72H* 126D |
| Operating Enviroment | Ambient Temperature: -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
| Ambient Temperature | -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
