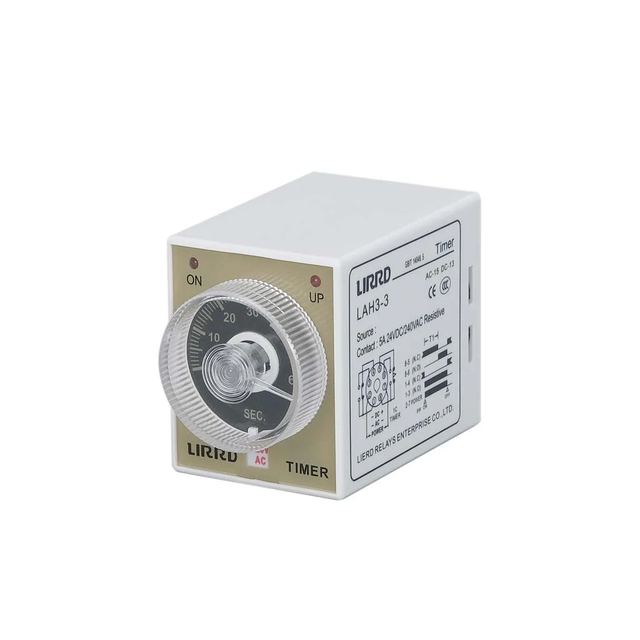

Time Relay LAH3-3 10, 30, 60 Seconds Range

Model LAH3

Time Relay LAH3-3 10, 30, 60 Seconds Range

Overview

Time Relay LAH3-3 10, 30, 60 Seconds Range, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Classification Time Relay, dimension(mm) 50.0H * 40.5W * 82.0L and rated voltage AC:12V- 24V- 110/220V- 380V are among the specifications published.

Technical specifications

ClassificationTime Relay
Dimension(mm)50.0H * 40.5W * 82.0L
Full Timing RangeSEC:1, 3, 6, 10, 12, 30, 60
Rated VoltageAC:12V- 24V- 110/220V- 380V
Indicator OperatingON, UP Operating
Electrical10 5 times
Setting Error±10% max
Voltage Error± 1% max.
Temp Error± 2% max.
Reset Time0.1sec max.
Power Consumpting2.5VA
Ambient Temperature-10~+55 °C
Ambient Humidity48~85%RH
Weight160g
FlushY-40 & US-08 or Y-40 & P3G-08
