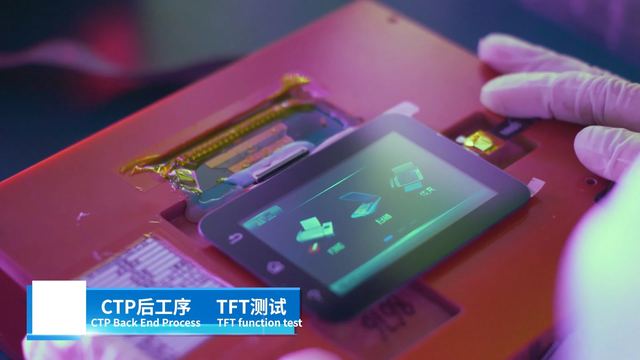

TFT LCD Display Module Manufacturing & OEM Integration
Model GD-800480T70N069A
Overview
TFT LCD Display Module Manufacturing & OEM Integration supplied by Goldconn. Key published specifications: Display Mode Normally Black; Resolution 800 RGB(H) *480(V); Outline Dimension（mm） 165(W)*104.00(H)*5.5(D); Interface LVDS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Display Mode | Normally Black |
|---|---|
| Resolution | 800 RGB(H) *480(V) |
| Outline Dimension（mm） | 165(W)*104.00(H)*5.5(D) |
| Interface | LVDS |
| Backlight （LEDs） | 30 LEDs 250mA/18V |
| Parameter Domain | Manufacturing Limits & Production Range |
| High-Pressure Debubbling Machine (Autoclave) | Maximum pressure ≤ 0.6 MPa |
| Temperature | 23 ± 2°C |
| Humidity | 65% ± 5% RH |
| Enhanced Display Performance | ● Eliminates air-gap reflections, increasing contrast by 15–20% |
