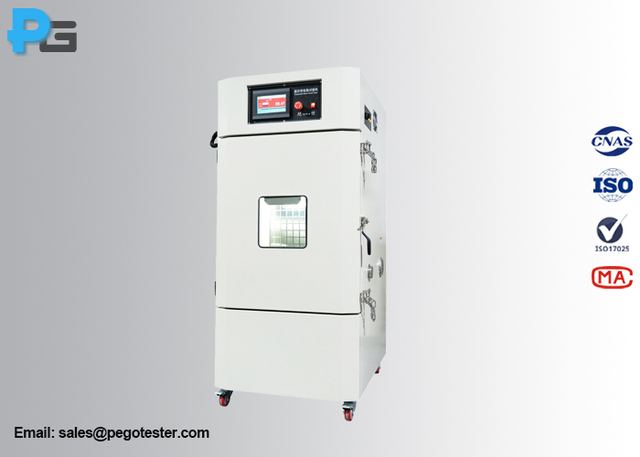

Temperature-Controlled Battery Short Circuit Test Chamber
Model PG-BSCT
Overview
Temperature-Controlled Battery Short Circuit Test Chamber supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification CNAS calibration Certificate; Test Current 0-1500A; Test Temperature R.T~100℃; Test Voltage 0-100V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CNAS calibration Certificate |
|---|---|
| Test Current | 0-1500A |
| Test Temperature | R.T~100℃ |
| Test Voltage | 0-100V |
| Control Unit | PLC+touch Screen |
| Max. Permissible Test Sample Size | 300mm*300mm*300mm |
| Working Dimensions of Explosion-Proof Chamber | 500mm*500mm*500mm |
| Temperature rising time | (5+1) ℃ /min |
| Action method | Double integral method |
| Sampling interval | 100ms |
| Voltage range | 0~5KV (AC and DC) |
| Leakage current | 0~100mA |
| Working Power | 220V/50Hz |
| Standard | IEC60335, IEC60598-1, IEC60065 and IEC60950 |
| Resistance range | 10.0-200mΩ (32A)/200~600mΩ (10A) |
