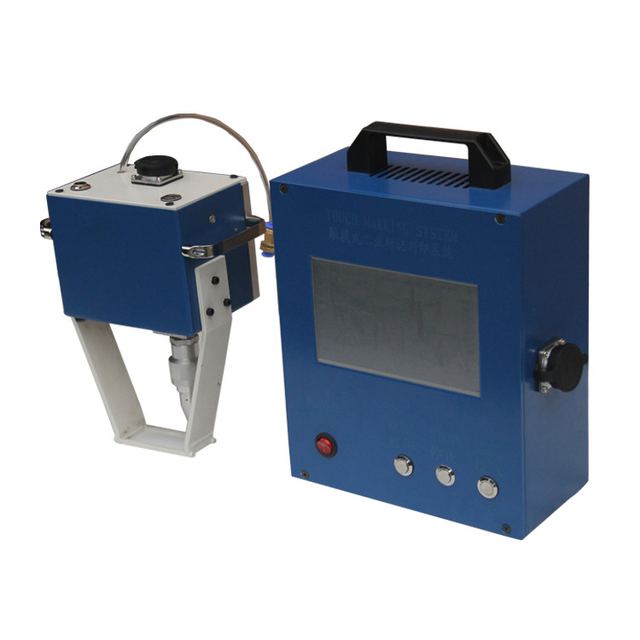

T7 Cntroller Flange Dot Peen Marking Machine 40x80mm Area 220V Power
Model PMK-G01
Overview
T7 Cntroller Flange Dot Peen Marking Machine 40x80mm Area 220V Power supplied by Chongqing Chuke Intelligent Machinery & Equipment Co.,Ltd. Key published specifications: Certification FDA,ISO,CE; Apply For Curved Surface; Controller 7"LCD Touch Screen; Software Insert ThorX6/T7. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | FDA,ISO,CE |
|---|---|
| Apply For | Curved Surface |
| Controller | 7"LCD Touch Screen |
| Software | Insert ThorX6/T7 |
| Marking Area | 40x80mm |
| Marking Materials | Above HRC60 Need Special Stylus |
| Connection | USB And RS-232 |
| Power | 220V |
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Gross weight | 22KG |
