Overview

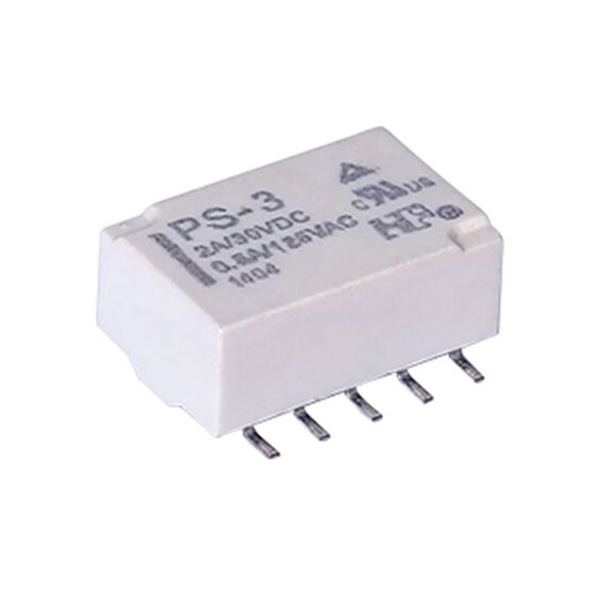

Surface Mount DPDP Signal Relay supplied by Ningbo Forward Relay Corp., Ltd. Listed under Relays. Key published specifications: Contact Arrangement 2C(DPDT(B-M)) (Bifurcated Crossbar); Contact Material AgPd(Au plated ) AgNi(Au plated); Contact Rating (Resistive) 1A,2A/30VDC; 0.5A/125VAC; Max. Switching Power 60W 62.5VA Min. Switching Load 0.01mA/10mV(Reference Value). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Arrangement	2C(DPDT(B-M)) (Bifurcated Crossbar)
Contact Material	AgPd(Au plated ) AgNi(Au plated)
Contact Rating (Resistive)	1A,2A/30VDC; 0.5A/125VAC
Max. Switching Power	60W 62.5VA Min. Switching Load 0.01mA/10mV(Reference Value)
Max. Switching Voltage	220VDC 250VAC Max. Swit ching Current:2A
Contact Resistance	≤50mΩ Item 4.12 of IEC 61810-7
Mechanical	1×10 8 Item 4.31 of IEC 61810-7
Model	PS
3 Contact material Nil	AgPd W: AgNi
Max. Swit ching Current	2A
