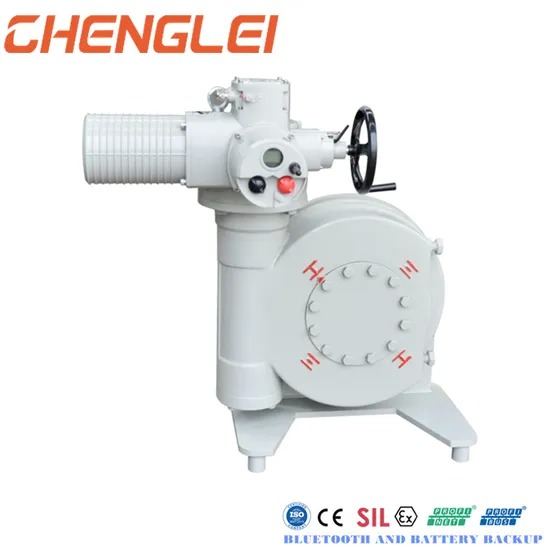

Subsea Angular Part Turn Electric Valve Actuator with IP67/IP68 Protection and NEMA 4/4X/7&9 Enclosure
Overview
Subsea Angular Part Turn Electric Valve Actuator with IP67/IP68 Protection and NEMA 4/4X/7&9 Enclosure supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Rated Frequency 50Hz/60Hz; Control Method On-off or modulating (4-20mA); Communication Protocols Profibus/Profinet/Modbus/HART/FF/Device net/ESD; Protection Grade IP65/IP67/IP68 options. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Frequency | 50Hz/60Hz |
|---|---|
| Control Method | On-off or modulating (4-20mA) |
| Communication Protocols | Profibus/Profinet/Modbus/HART/FF/Device net/ESD |
| Protection Grade | IP65/IP67/IP68 options |
| Insulation Level | F level |
| Environmental Temperature | -20°C to +60°C (special orders -60°C to +70°C) |
| Relative Humidity | ≤ 95% (at +25°C) |
| Connection | Flange |
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Anti-corrosion coating | electrostatic powder spraying |
| Body material options | Aluminum alloy/stainless steel/carbon steel |
