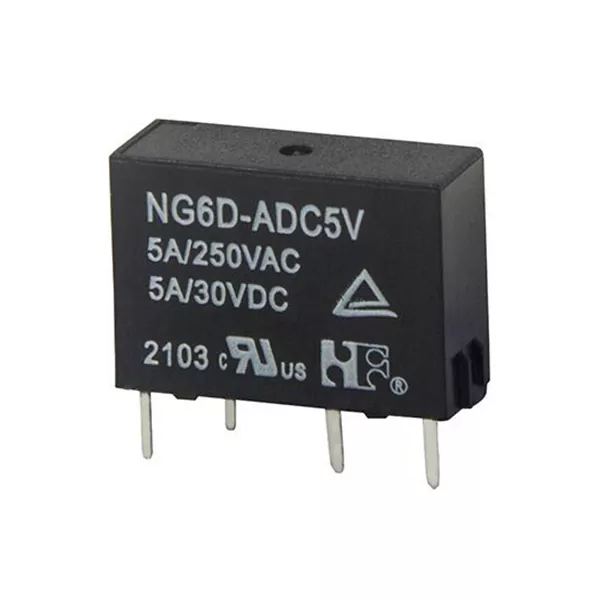

Subminiature PCB Power Relay 5A
Model NG6D
Overview
Subminiature PCB Power Relay 5A, listed by Ningbo Forward Relay Corp., Ltd in Ningbo, Zhejiang. Published figures include contact arrangement 1A (SPSTNO), contact material Ag Alloy and contact rating (resistive) 5A/250VAC,30VDC.
Technical specifications
| Contact Arrangement | 1A (SPSTNO) |
|---|---|
| Contact Material | Ag Alloy |
| Contact Rating (Resistive) | 5A/250VAC,30VDC |
| Max. Switching Power | 150W 1250VA Min Switching Load:10mA/5V |
| Max. Switching Voltage | 30VDC 250VAC Max. Swit ching Current:5A |
| Contact Resistance | ≤100mΩ Item 4.12 of IEC 61810-7 |
| Mechanical | 2×10 7 Item 4.31 of IEC 61810-7 |
| 4 Contact plating option | G:Au plated |
| Min Switching Load | 10mA/5V |
| Max. Swit ching Current | 5A |
| 50Hz 3000V surge voltage | 6kV |
