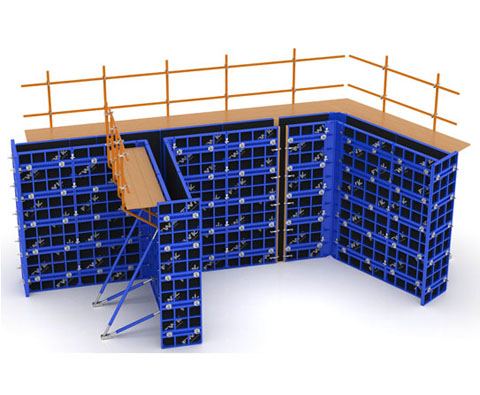

Steel Frame Wall Formwork

Steel Frame Wall Formwork

Overview

Steel Frame Wall Formwork supplied by YANCHENG LIANGGONG FORMWORK CO., LTD. Listed under Formwork. Key published specifications: Frame Material Q235B Steel, powder coated; Formlining 12mm thickness plywood; Panel Depth 65 mm; Panel Weight 40kg/sqm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Frame MaterialQ235B Steel, powder coated
Formlining12mm thickness plywood
Panel Depth65 mm
Panel Weight40kg/sqm
Max Panel Size3*1.2m
Panel DimensionHeight: 3000/2400/1200/600 mm Width: 1200/1000/750/500 mm
Adjust Hole Distance50mm
Max Permissible Fresh Concrete Pressure60KN/sqm(without waler) 80KN/sqm(with waler)
Installation Time150sqm/day
Height3000/2400/1200/600 mm
Width1200/1000/750/500 mm
