Overview

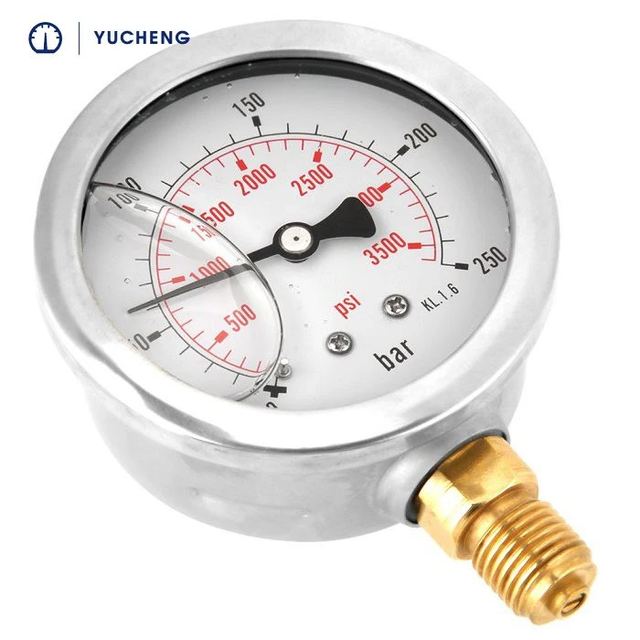

Steel Case Brass Connect Oil Pressure Gauge supplied by Hangzhou Yucheng Science & Technology Co., Ltd. Listed under Pressure Gauges. Key published specifications: Normal size 1.5(40mm),2.0(50mm),2.5(63mm),4(100mm); pressure range -1Bar(((-30"Hg)-0-1000Bar(15000psi); Operating temperature -20℃ to +60℃; Connection stainless steel Or brass. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Normal size	1.5(40mm),2.0(50mm),2.5(63mm),4(100mm)
pressure range	-1Bar(((-30"Hg)-0-1000Bar(15000psi)
Operating temperature	-20℃ to +60℃
Connection	stainless steel Or brass
Thread	1/8,1/4,3/8,1/2; PT(BSPT,ZG),BSP(G,PF),NPT etc.
