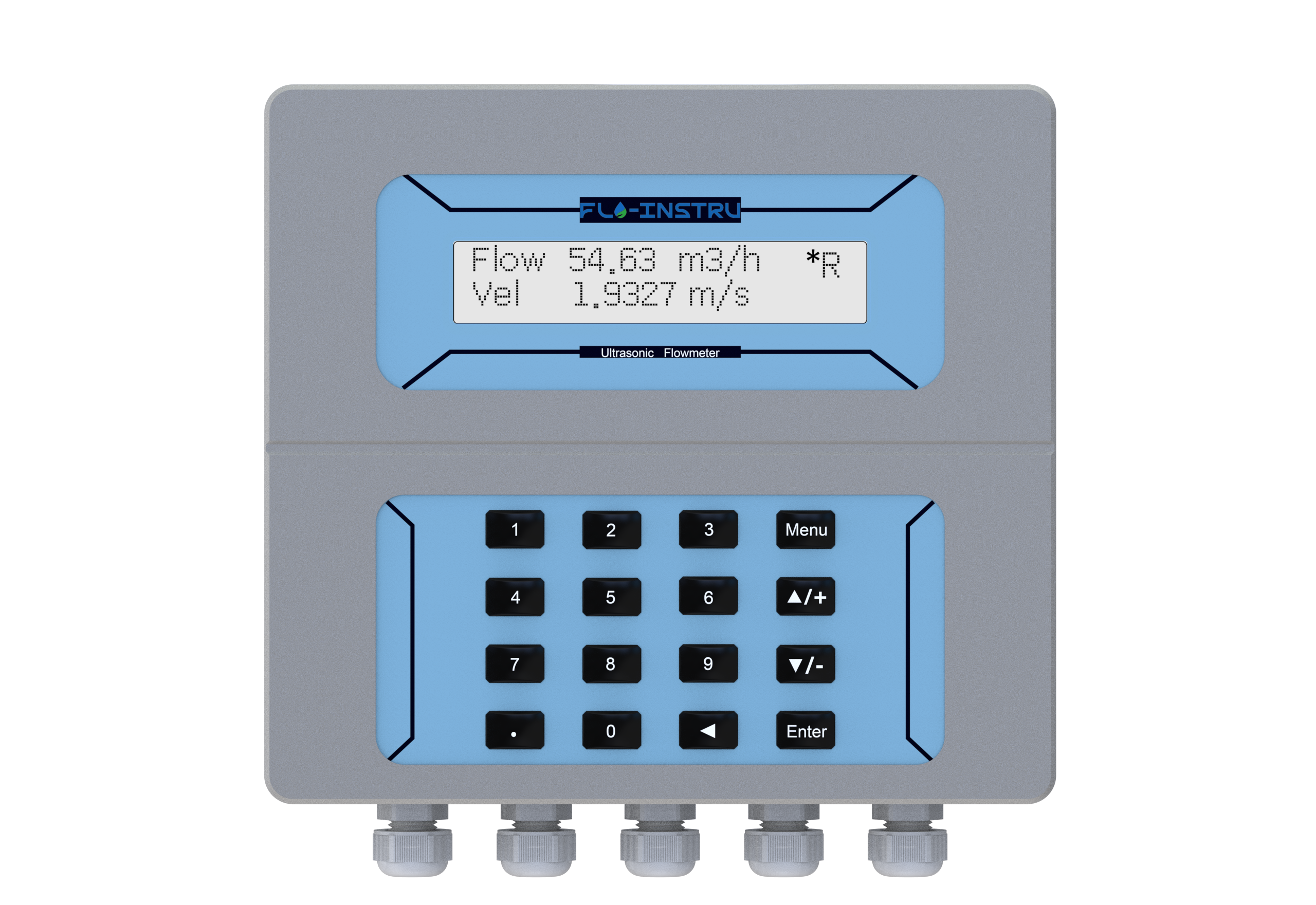

ST505 Wall-Mounted Ultrasonic Flow Meter
Model ST505
Overview
Flo-Instruments Co., Ltd in Shenzhen, Guangdong lists ST505 Wall-Mounted Ultrasonic Flow Meter under Ultrasonic Flow Meters. Published figures include keypad 16(4×4) Key With Tactile Action, velocity range 0 ~ ±16ft/s (0 ~ ±5m/s) and pipe size 1”~48”(25mm~1200mm).
Technical specifications
| Keypad | 16(4×4) Key With Tactile Action |
|---|---|
| Temperature Range | Transmitter: -40℉~140℉ (-40℃~60℃); Transducer: 32℉~140℉ (0℃~60℃) |
| Velocity Range | 0 ~ ±16ft/s (0 ~ ±5m/s) |
| Pipe Size | 1”~48”(25mm~1200mm) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.3% of measured value |
| Power Supply | 24V DC |
| Display | (20×2), alphanumeric, backlit LCD |
| Communication | RS485 |
| Transmitter | Die-cast aluminum, IP65, CNC machined |
| Temperature | Transmitter: -40℉~140℉ (-40℃~60℃) Transducer: 32℉~140℉ (0℃~60℃) Standard |
| Humidity | Up to 99% RH, non-condensing |
| Certification | CE; ISO9001 |
| Analog output | 4~20mA, max load 750Ω |
| Pulse output | 0~9999Hz, OCT (min. and max. frequency adjustable) |
| Standard/maximum cable length | 30ft/1000ft (9m/305m) |
| Liquid Temp. | 32℉~140℉ (0℃~60℃) (Standard) |
| Standard cable length | 33ft (10m) |
