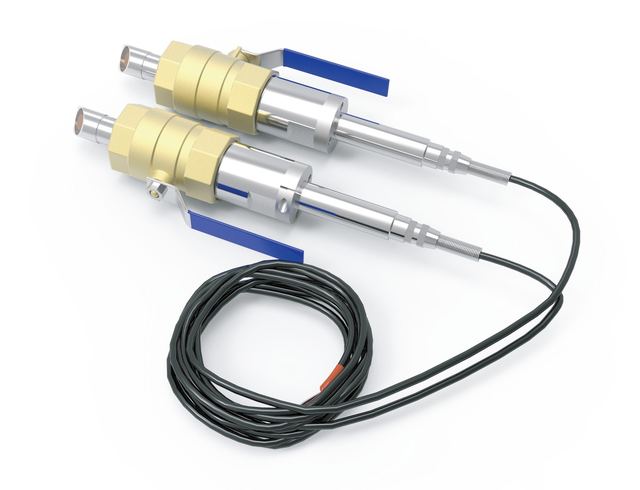

ST502 Insertion Ultrasonic Flowmeter for Accurate Liquid Flow Measurement
Model ST502
Overview
ST502 Insertion Ultrasonic Flowmeter for Accurate Liquid Flow Measurement, listed under Flow Measurement by Flo-Instruments Co., Ltd in Shenzhen, Guangdong. Published figures include pipe size DN25-DN5000, velocity range 0.03 ~±40ft/s (0.01~±12m/s) and power supply 24V DC.
Technical specifications
| Pipe Size | DN25-DN5000 |
|---|---|
| Velocity Range | 0.03 ~±40ft/s (0.01~±12m/s) |
| Power Supply | 24V DC |
| Transducers | Operating Temperature: -40℉ ~ +176℉ (-40℃~+80℃) |
| Display | 20*2, Alphanumeric, Backlit LCD |
| Transmitter Enclosure | IP65, Die-cast Aluminum Machined Enclosure, CNC Machined |
| Communication | RS485 |
| Keypad | 16 Light Tactile Keys |
| Repeatability | 0.15% of measured value |
| Communication & Outputs | Communication: ModBus RS485 |
| Time Unit | /Day/Hour, /Min, /Sec. |
| SD Card | Max record: 2GB, working more than 1000 days |
| Temperature | Transmitter: -40℉~140℉ (-40℃~60℃) |
| Humidity | Up to 99% RH, non-condensing |
| Transmitter | Die-cast aluminum, IP65, CNC machined |
| Transducer | Encapsulated design, protection grade IP68 |
| Weight | Transmitter: 1kg |
| Certification | CE; ISO9001 |
| Max record | 2GB, working more than 1000 days |
| Storage time interval | 1~86400s |
| Standard cable length | 33ft (10m). |
