Overview

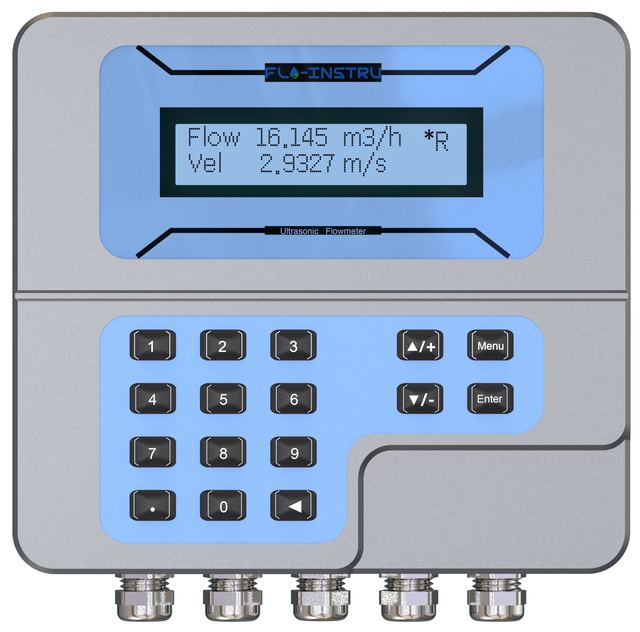

ST502 Insertion Ultrasonic Flow Meter with ±0.5% Accuracy for DN25-DN5000 Pipe Size and IP65 Enclosure supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Pipe Size DN25-DN5000; Power Supply 24V DC; Velocity Range 0.03 ~±40ft/s (0.01~±12m/s); Repeatability 0.15% of measured value. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Pipe Size	DN25-DN5000
Power Supply	24V DC
Velocity Range	0.03 ~±40ft/s (0.01~±12m/s)
Repeatability	0.15% of measured value
Time Unit	/Day/Hour, /Min, /Sec
Keypad	16 touch keys
Display	20×2 lattice alphanumeric, back lit LCD
Temperature	Transmitter: -40℉~140℉ (-40℃~60℃) Transducer: -40℉~176℉ (-40℃~80℃)
Humidity	Up to 99% RH, non-condensing
Transmitter	Die-cast aluminum, IP65, CNC machined
Transducer	Encapsulated design, protection grade IP68
Transducer cable	Standard cable length: 33ft (10m)
Weight	Transmitter: 1kg
Certification	CE; ISO9001
Analog output	4~20mA, max load 750Ω
Pulse output	0~9999Hz, OCT (min. and max. frequency adjustable)
Max record	2GB, working more than 1000 days
Storage time interval	1~86400s
Standard cable length	33ft (10m)
