Overview

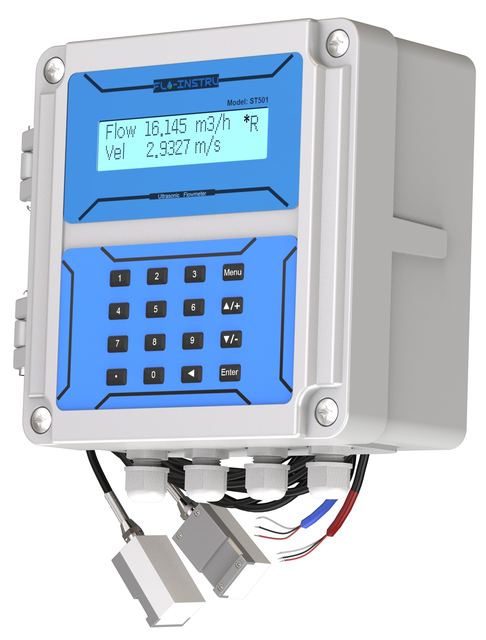

ST501 Fixed Ultrasonic Flowmeter with ±1.0% Accuracy, Clamp-on Transducers, and RS485 Communication supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Keypad 16(4×4) Key With Tactile Action; Communication Interface RS485; Transducer Cable Standard Cable Length: 33ft (10m); Power Supply 24V DC/1A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Keypad	16(4×4) Key With Tactile Action
Communication Interface	RS485
Transducer Cable	Standard Cable Length: 33ft (10m)
Power Supply	24V DC/1A
Velocity range	0 ~ ±16ft/s (0 ~ ±5m/s)
Pipe size	Clamp-on: 1''~48'' (25mm~1200mm)
Display	20×2 lattice alphanumeric, back lit LCD
Temperature	Transmitter: 32℉~140℉ (0℃~60℃) Transducer: 32℉~140℉ (0℃~60℃)
Humidity	Up to 99% RH, non-condensing
Transmitter	Aluminum Alloy, IP65
Transducer	Encapsulated design, IP68
Weight	Transmitter: approximately 0.7kg; Transducer: approximately 0.4kg
Certification	CE; ISO9001
Standard Cable Length	33ft (10m)
OCT Pulse output	0~5000Hz.
