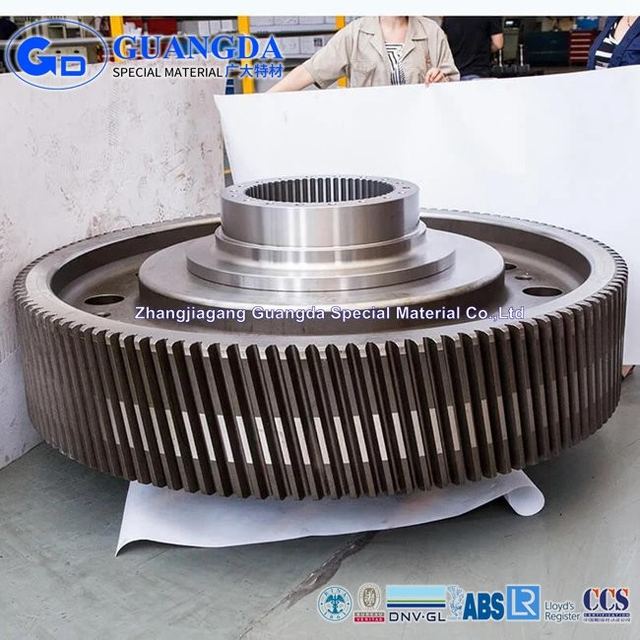

Spline Gears AISI 1045 4140 4130 4340 Precision Gears
Overview
Spline Gears AISI 1045 4140 4130 4340 Precision Gears, listed by Zhangjiagang Guangda Special Material Co., Ltd in Zhangjiagang, Jiangsu. Shaping Tooth grinding, max o.d. 5000mm and max face width 2200mm are among the specifications published.
Technical specifications
| Shaping | Tooth grinding |
|---|---|
| Max O.D. | 5000mm |
| Max Face Width | 2200mm |
| Max module | M35 |
| AGMA leval/DIN leval | DIN3962 CLASS 8 |
| Din3962 Class 8 | DIN3962 CLASS 4 |
| Tooth Surface finishing | Ra3.2 |
| Material | 18CrNiMo7-6,17CrNiMo6,18CrNiMo7 Etc |
| Diameter | Max 5000mm |
| Type | Forging |
