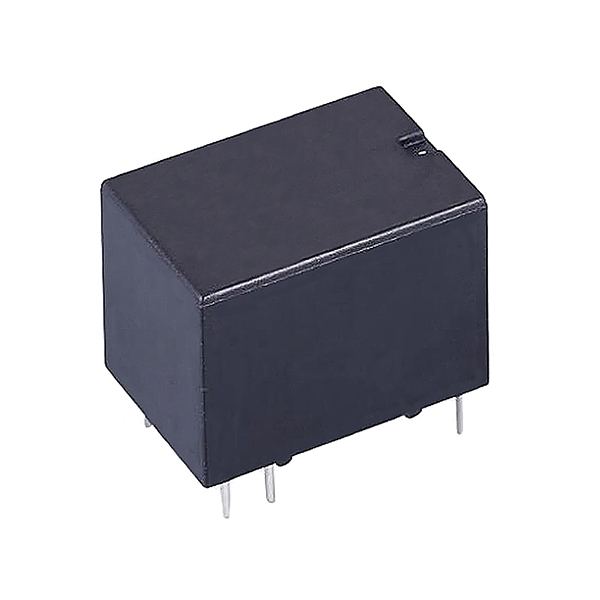

SPDT DC Signal Relay
Overview
SPDT DC Signal Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Contact Material AgNi + Gold Plating; Rated Load (Resistance Load) 1A 240VAC/30VDC, 3A 120VAC; Max. Switching Voltage 240VAC30VDC; Max. Switching Current 5A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contact Material | AgNi + Gold Plating |
|---|---|
| Rated Load (Resistance Load) | 1A 240VAC/30VDC, 3A 120VAC |
| Max. Switching Voltage | 240VAC30VDC |
| Max. Switching Current | 5A |
| Max. Switching Capacity | 360VA/30W |
| Min. Allowing Load | 5VDC 100mA |
| Insulation Resistance (Initial) | 1000mΩ (500VDC) |
| Vibration Resistance | 10Hz ~ 55Hz 1.5mm DA |
| Humidity | 5% to 85% |
| Unit Weight | 5g |
| Certification | CE, CCC, TUV, UL |
| Dimension (Unit | mm) |
