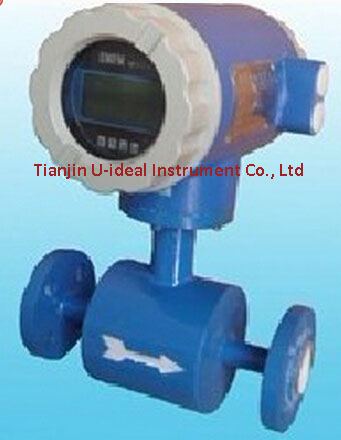

Small Size Electromagnetic Flow Meter
Overview
Small Size Electromagnetic Flow Meter supplied by Tianjin U-ideal Instrument Co., Ltd. Listed under Flow Meters. Key published specifications: Type Electromagnetic Flow Meter; Size > DN3, DN5, DN6, DN8, DN10; Standard SGS; Production Capacity 3000PCS/Month. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Electromagnetic Flow Meter |
|---|---|
| Size | > DN3, DN5, DN6, DN8, DN10 |
| Standard | SGS |
| Production Capacity | 3000PCS/Month |
| Execution standard | JB/T9248-2000 electromagnetic flowmeter |
| Nominal diameter | DN3, DN5, DN6, DN8, DN10 (mm) |
| Working temperature | - 30 ~ + 180 ºC |
| Output signals | 4 ~ 20 mA DC; RS232; RS485; Hart, |
| Upstream, straight pipe length | > = 5DN, downstream >=3 DN |
| Connection mode | flange |
| Ambient temperature | 25 ºC ~ + 45 ºC |
| Relative humidity | 5% ~ 95%c |
