Overview

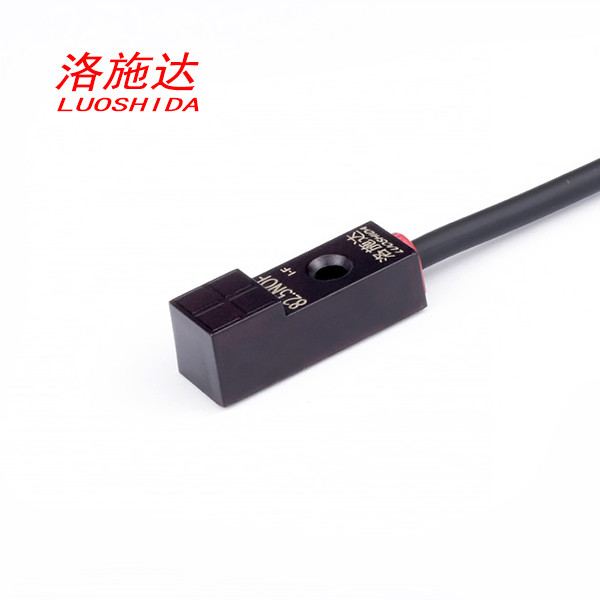

Small Rectangular Inductive Proximity Switch Sensor DC 3 Wire 8x8 For Metal Detector supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Produt Name Rectangular Proximity Sensor; Size 8*8mm; Housing Color Black. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE ROHS
Produt Name	Rectangular Proximity Sensor
Size	8*8mm
Housing Color	Black
Sensing Distance	2.5mm
Output	NPN PNP NO NC
Voltage	10-30VDC
Housing Material	PC
With or Without LED	● with LED
Operating Voltage	10-30VDC
No Load Current	<10mA
Max.Load Current	150mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3.0%(Sr)
Protection Category	IP67
Operating Temperature	-25°C- +70°C
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	180mA
Shock/Vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face	PC
Connection	D3 3*0.15 PVC 2M
Series	Q8 Square Type Inductive proximity sensor
Mounting	Non-shielded
Sensing Distance Sn(mm)	2.5mm
