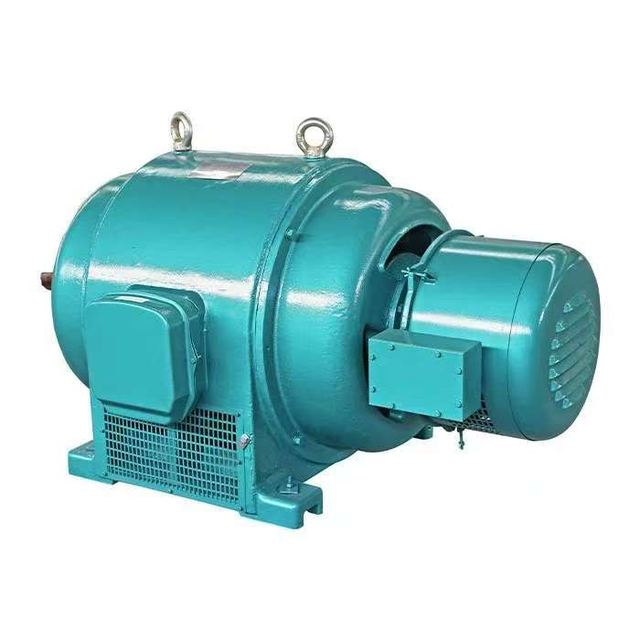

Slip Ring Motor
Overview
Slip Ring Motor supplied by Xian Putai Electric Motor Equipment Co., Ltd. Listed under Motors. Key published specifications: Frame H400; Power Scope 315kW; Voltage 3000V, 3300V, 4160V, 6000V, 6600V, 10kV, 11kV; Frequency 50Hz, 60Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Frame | H400 |
|---|---|
| Power Scope | 315kW |
| Voltage | 3000V, 3300V, 4160V, 6000V, 6600V, 10kV, 11kV |
| Frequency | 50Hz, 60Hz |
| Number of Poles | 4P, 6P, |
| Speed | 1480rpm,985rpm,737rpm |
| Cooling Mechod | IC81W |
| Protection Grade | IP54, IP55 |
| Insulation Class | F(155℃), H(180℃) |
| Duty | S1, S4, S5, S6, S9 |
| Mounting Type | B3 |
