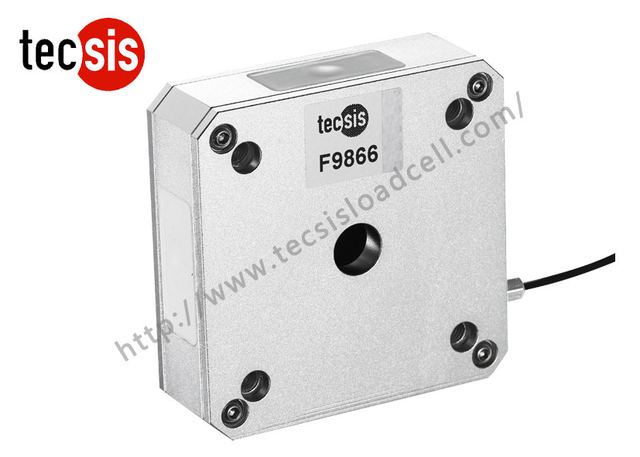

Six Dimensional Force Sensor Load Cell Multi Axis Load Cell Force Sensor
Model F9866
Overview
Six Dimensional Force Sensor Load Cell Multi Axis Load Cell Force Sensor supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Square; Material Aluminum Alloy; Capacity 50N~300N; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Square |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 50N~300N |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Zero balance | ±2% F.S. |
| Total error | 0.5% F.S. |
| Crosstalk-No Adjustment | 0.5% F.S. |
| Crosstalk-with Adjustment | 2.5% F.S. |
| Temp. effect on output | 0.5% F.S. / 10ºC |
| Temp. effect on zero | 0.5% F.S. / 10ºC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Operation temp. range | - 10~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø2.4×3000mm(2x) |
| Standard | carton |
| Model | F9866 |
| Technical parameters | Specifications |
| Power | Exc+(Red) Exc-(Black); |
