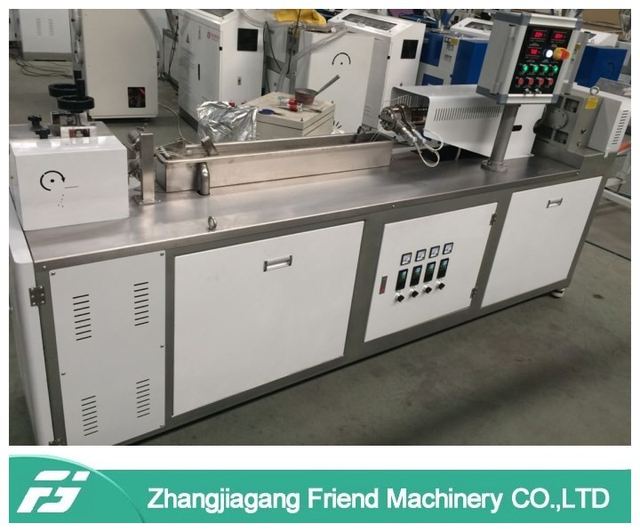

Single Vented Screw LDPE HDPE Plastic Pelletizer Machine
Model SJ65
Overview
Zhangjiagang Friend Machinery Co.,lTD in Zhangjiagang, Jiangsu lists Single Vented Screw LDPE HDPE Plastic Pelletizer Machine under Screws. The listing gives certification CE,SGS,UV, material Recycle Plastic Scrap and control system Siemens , Omron, ABB.
Technical specifications
| Certification | CE,SGS,UV |
|---|---|
| Material | Recycle Plastic Scrap |
| Control System | Siemens , Omron, ABB |
| Screw diameter | 65mm |
| Capacity | 50-80kg/h |
| Screw and Barrel making material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Main Motor Power | 30kw |
| Barrel heater type | Cast aluminum heater+304 stainless steel cover |
| Heating power | barrel + mold |
| Barrel cooling type | forced air cooling |
| Screw type | vent screw |
| Fan power | 1.5kw |
| Screw Max Rotating Speed | :13-130rmp |
| Center height | 1000mm |
| Weight | 1500kg |
| Gear type | hard tooth -faced speed reducer |
| Mold and head material | 40Cr steel |
| Mold hardness | HV950-1050 |
| Heating band and thermocouple matched | yes |
| Working performance | final pet strand cooling |
| Main making material | 304 stainless steel |
| Tank length | 4M |
| Machine structure | Q235 steel |
| Tank height adjustment | +-90mm |
| Heating dryer driving motor | 2.2kw |
| Drying pipe making material | 304 stainless steel |
| Traction roller making material | 4pcs*nylon material |
