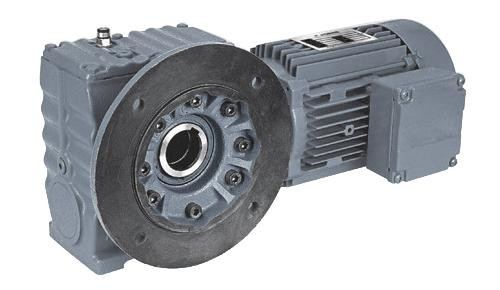

Single Stage Right Angle Helical Gear Reducer Gearbox SAF SAZ SF
Overview
Single Stage Right Angle Helical Gear Reducer Gearbox SAF SAZ SF supplied by Shanghai Fanbao Industrial Co., Ltd. Key published specifications: Output Torque 10-4890(N.M); Input Speed 1450rpm; Output Speed 0.12-397(rpm); Efficiency 94%~98%(depends on the transmission stage). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output Torque | 10-4890(N.M) |
|---|---|
| Input Speed | 1450rpm |
| Output Speed | 0.12-397(rpm) |
| Efficiency | 94%~98%(depends on the transmission stage) |
| Mounting Position | Foot, flange, torque, arm, hollow/s |
| Gearing Arrangement | Worm |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62° |
| Gear core hardness | HRC33~40 |
| Input/Output shaft material | 42CrMo alloy steel |
| Input/Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Noise (MAX) | 60~68dB |
| Backlash | ≤20Arcmin |
| Ideal Applications | Conveyor & Material handling |
