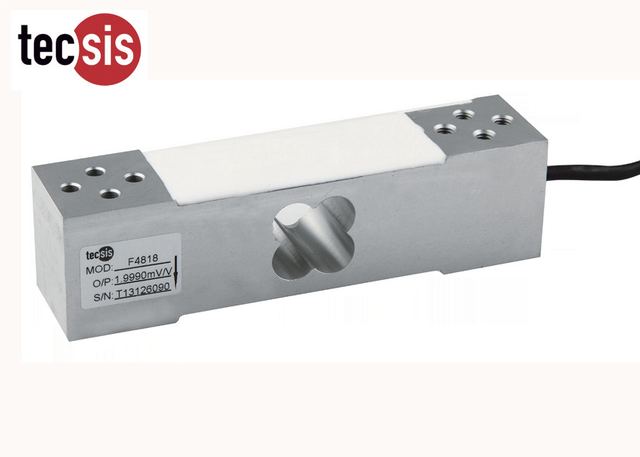

Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor
Model F4818
Overview
Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor, listed by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. The listing gives type Single Point Load Cell, material Aluminum Alloy and capacity 20kg~500kg.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 20kg~500kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥2000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×1500 mm |
| Platform size | 450×450mm |
| Standard | carton |
| Model | F4818 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
