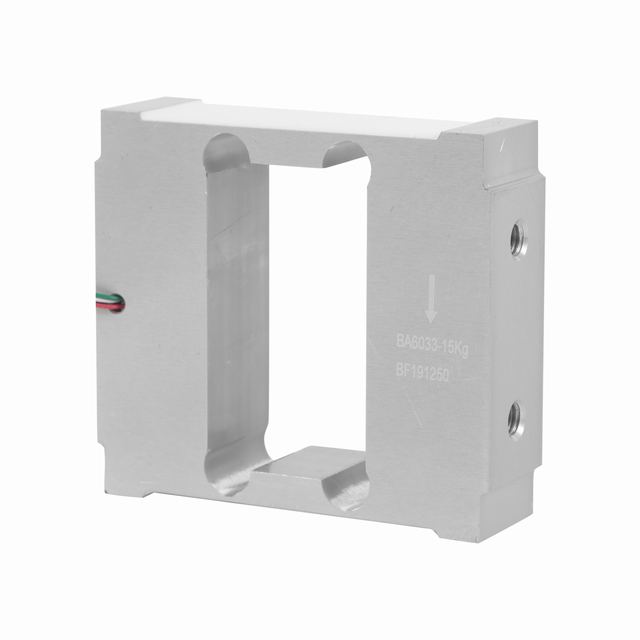

Single Point Load Cell WL-119 Side Mounted 1-30kg For Electronic Price Scales
Model WL-119
Overview
Single Point Load Cell WL-119 Side Mounted 1-30kg For Electronic Price Scales supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 1-30kg; Sensitivity 2.0±20%mV/V; Cable Size Ф4x500mm(Customizable); Water Protection IP 65(Customizable). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 1-30kg |
|---|---|
| Sensitivity | 2.0±20%mV/V |
| Cable Size | Ф4x500mm(Customizable) |
| Water Protection | IP 65(Customizable) |
| Non-linearity | 0.017%F.S. |
| Combined Error | 0.017% F.S. |
| Rated output | 2.0±20%mV/V |
| Accuracy class | C3 |
| Zero balance | ±0.02mV/V |
| Hysteresis | ±0.015%F.S. |
| Repeatability | ±0.017%F.S. |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 10-15VDC |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| IP class | IP65 (Customizable) |
| Material | Aluminum alloy |
| Nominal displacement | ＜0.4mm |
| Max.platform size | 200mm×200mm |
| Weight approx. | 0.3kg |
| Certification | CNAS |
| Dimension(MM) | Capacity |
