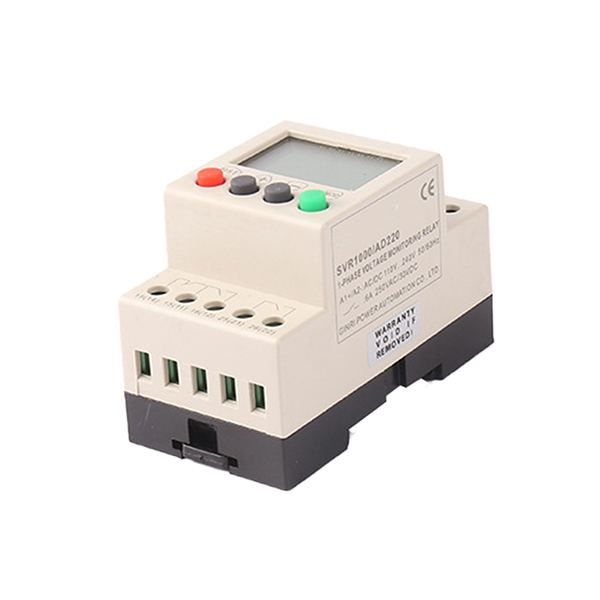

Single Phase Voltage Monitoring Relay

Single Phase Voltage Monitoring Relay

Overview

Single Phase Voltage Monitoring Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Measuring Circuit AC/DC circuit (A1+, A2-); Monitoring Functions Overvoltage, Undervoltage; Delay Time for Overvoltage & Undervoltage 0.1-999s adjustable; Reset Mode Manual/Automatic/Automatic with power-on delay. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Measuring CircuitAC/DC circuit (A1+, A2-)
Monitoring FunctionsOvervoltage, Undervoltage
Delay Time for Overvoltage & Undervoltage0.1-999s adjustable
Reset ModeManual/Automatic/Automatic with power-on delay
Delay Time for Reset0.1-999s adjustable
Fault RecordsThe last 3 faults
Output Contacts1 CO + 1 NC
Contact Capacity6A, 250V AC (resistive load)
Degree of ProtectionIP 20
Humidity≤85%RH, non-condensing
Mechanical Durability1,000,000 cycles
Dielectric Strength＞2kVAC 1min
Mounting35mm DIN rail
Weight130g
Dimensions (H*W*D)80*43*54mm
