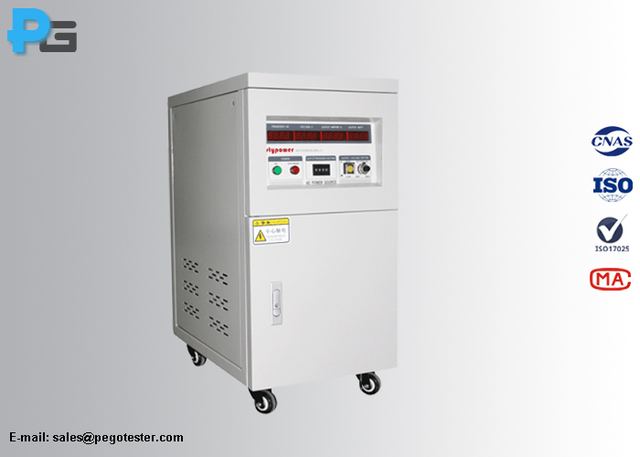

Single Phase AC DC Power Supply with Variable Voltage and Adjustable Frequency 2KVA Capacity

Model TY-82XX

Single Phase AC DC Power Supply with Variable Voltage and Adjustable Frequency 2KVA Capacity

Overview

Single Phase AC DC Power Supply with Variable Voltage and Adjustable Frequency 2KVA Capacity supplied by Pego Electronics (Yi Chun) Company Limited. Listed under Power Supplies. Key published specifications: Certification Third-lab Calibration Certificate; Capacity 2KVA; Model TY-8202; Input Voltage 1 phase 2 wires + G: 220V±10%. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationThird-lab Calibration Certificate
Capacity2KVA
ModelTY-8202
Input Voltage1 phase 2 wires + G: 220V±10%
Input Frequency47Hz-63Hz or 400Hz ±5%
Output Voltage (Single Phase)Low: 0-150V | High: 0-300V
Output Frequency40.0Hz-99.9Hz (presetable)
Harmonic DistortionSinewave ≤2%
Frequency Meter4 digit, resolution: 0.1Hz
Voltmeter4 digit, resolution: 0.1V
Amperemeter4 digit, resolution: 0.1A
Wattmeter4 digit, resolution: 0.1W
Output Current LimitsLow: 16.8A | High: 8.4A
Weight50KG
Output Voltage0 To 300V Adjustable
Frequency40.0Hz-99.9Hz Adjustable
1 phase 2 wires + G220V±10%
4 digit, resolution0.1Hz
Output current0.005A～10.00A
Max output power500W
Dimension420mm*420mm*190mm
Voltage range0.005V～30.00V, 0.005V~50.000V, 0.0005V~300.00V
Current range0.005A～10.00A, 0.005A~10.00A, 0.005A~5.00000A
