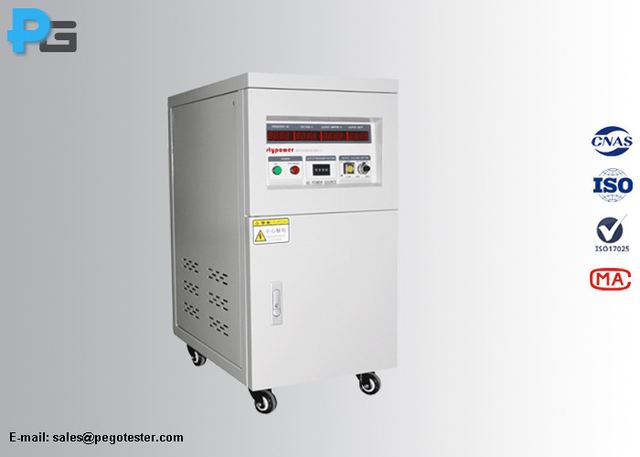

Single Phase Ac Dc Power Supply Variable Voltage Frequency 2KV / 5KV / 10KV Selectable

Model TY-82XX

Single Phase Ac Dc Power Supply Variable Voltage Frequency 2KV / 5KV / 10KV Selectable

Overview

Single Phase Ac Dc Power Supply Variable Voltage Frequency 2KV / 5KV / 10KV Selectable supplied by Pego Electronics (Yi Chun) Company Limited. Listed under Power Supplies. Key published specifications: Capacity 2KVA; Model TY-8202; Mode IGBT/PWM; Frequency 47Hz--63Hz or 400Hz ±5%. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Capacity2KVA
ModelTY-8202
ModeIGBT/PWM
Frequency47Hz--63Hz or 400Hz ±5%
Hormonic distortionsinewave≤2%
Frequency meter4 digit, resolution: 0.1Hz
voltmeter4 digit, resolution: 0.1V
Amperemeter4 digit, resolution: 0.1A
Wattmeter4 digit, resolution: 0.1W
High current limitH:8.4A
Output Voltage0 To 300V Adjustable
1 phase 2 wires + G220V±10%
4 digit, resolution0.1Hz
Weight5KG
Output current0.005A～10.00A
Max output power500W
Dimension420mm*420mm*190mm
Voltage range0.005V～30.00V, 0.005V~50.000V, 0.0005V~300.00V
Current range0.005A～10.00A, 0.005A~10.00A, 0.005A~5.00000A
