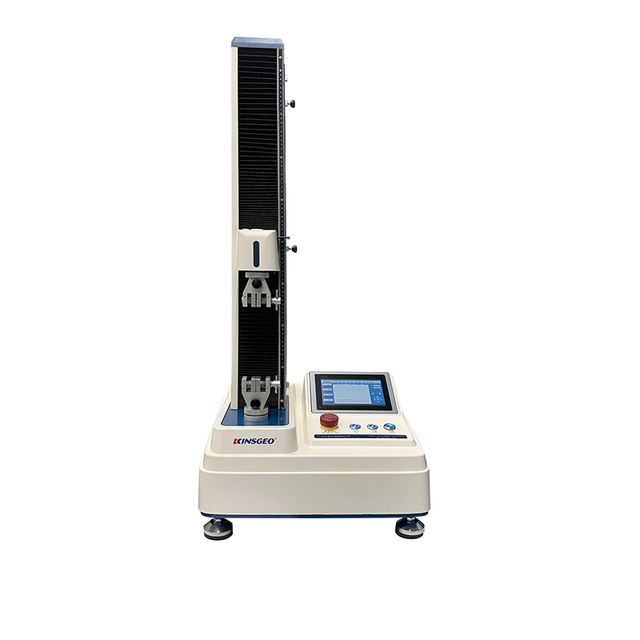

Single Column Electronic Tensile Testing Machine for Plastic Rubber
Model KJ-1065
Overview
Single Column Electronic Tensile Testing Machine for Plastic Rubber supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Key published specifications: Certification CE/ISO; Power AC220V 50Hz; Application Universal Tester; Standard BS.EN.ASTM. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Application | Universal Tester |
| Standard | BS.EN.ASTM |
| Stroke | 650mm(excluding Clamp) |
| Tester Resolution | Constant The Resolution |
| Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7 |
| Model | KJ-1065A-N |
| Capacity | 5, 10, 20,50,100kg (optional) |
| Speed Range | 0.1-500mm/min adjustable, constant speed, 300mm/min |
| Test Space | 120mm MAX |
| Dimensions (W×D×H) | 50×50×120cm |
| Optional Accessories | Stretcher, air clamp |
| Weight | 60kg |
| Design standard | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 |
| Control | PC |
| Test Speed | 50～400mm/min adjustable,constant speed 300mm/min |
| Accuracy | ±0.5% or better |
