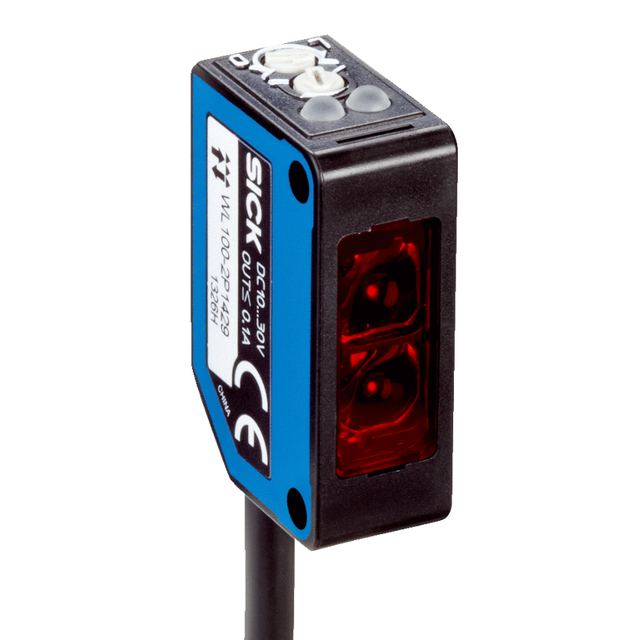

SICK WL100-2N1439 For Object Detection In Industrial Automation And Control Systems
Model WL100-2N1439
Overview
SICK WL100-2N1439 For Object Detection In Industrial Automation And Control Systems, listed by NEW SOURCE AUTOMATION CO.,LTD in Xiamen, Fujian. The listing gives product type Retroreflective Photoelectric Sensor, light source Visible Red LED and cable length 2m.
Technical specifications
| Product Type | Retroreflective Photoelectric Sensor |
|---|---|
| Light Source | Visible Red LED |
| Cable Length | 2m |
| Dimension | 11×31×20mm |
| Light Spot Size | Ø 280mm at 4m distance |
| Output Type | NPN (max 100mA output currnt) |
| Response Time | ≤ 0.5ms (resistive load) |
| Switching Frequency | 1,000 Hz (1:1 light/dark ratio) |
| Connection | 3-wire PVC cable, 2m length, 0.18mm² conductor area |
| Dimensions | 11mm (W) x 31mm (H) x 20mm (D) |
| Mounting | M3 threaded holes for secure installation |
| Housing Material | ABS/PC/POM plastic; lens: PMMA plastic |
| Protection Rating | IP67 (dust tight, water jet resistant) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| 1,000 Hz (1 | 1 light/dark ratio) |
