Overview

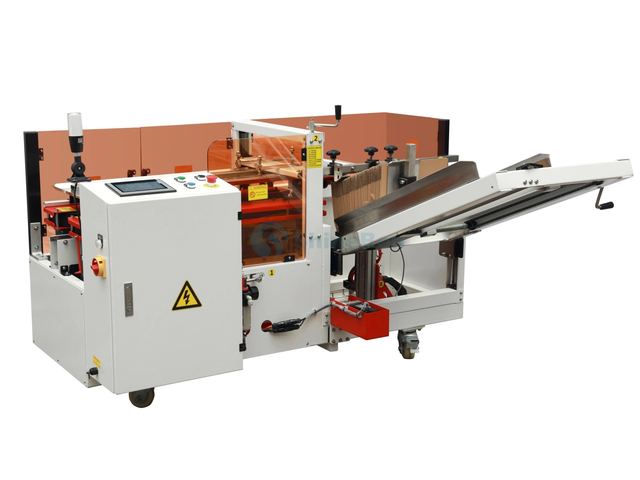

Servo Driven Case Erector and Sealer SBM-CE30 supplied by Shineben Machinery Co., Ltd. Listed under Packaging. Key published specifications: Speed up to 30 cases per minute; Case Size 280≤L≤550mm, 160≤W≤400mm, 510≤L+W≤1000mm, 300≤H+W/2≤620mm; Tape Width 48mm; Power consumption 400w or customized. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Speed	up to 30 cases per minute
Case Size	280≤L≤550mm, 160≤W≤400mm, 510≤L+W≤1000mm, 300≤H+W/2≤620mm
Tape Width	48mm
Power consumption	400w or customized
Power supply	AC220V/50Hz AC380V/50Hz Optional
Workable Height	1050mm
Air Pressure	5-6kgf/cm 3 ,450NL/min
Dimension	(L)2250(W)1650(H)1435mm
Machine Weight	400kg
