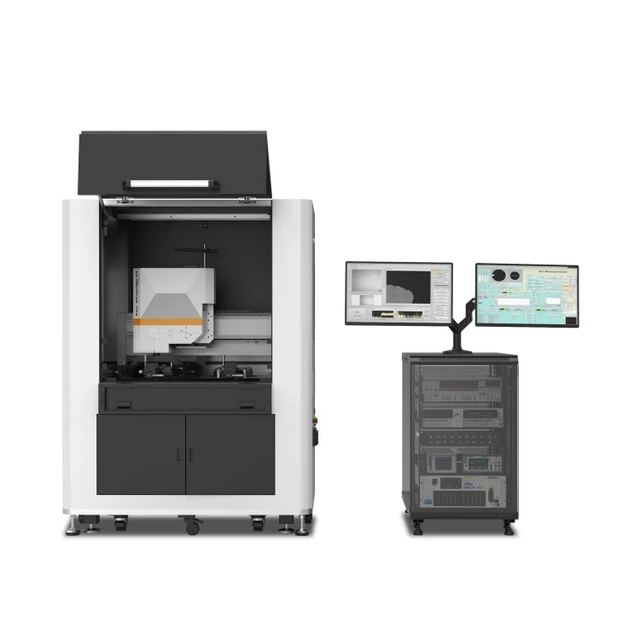

Semiconductor Microscope
Overview
Semiconductor Microscope supplied by Nice-Tech Co., Ltd. Listed under Semiconductors. Key published specifications: Light Source White Light LED, Spectral Range: 420-700 nm; Nosepiece 6-Position @ fully motorized; Repeat Positioning Accuracy: 0.001°; Camera 1936 × 1464 (132.2 fps); Z Stage Travel / Scanning range Moving distance: 100 mm; Scanning range: 10 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Light Source | White Light LED, Spectral Range: 420-700 nm |
|---|---|
| Nosepiece | 6-Position @ fully motorized; Repeat Positioning Accuracy: 0.001° |
| Camera | 1936 × 1464 (132.2 fps) |
| Z Stage Travel / Scanning range | Moving distance: 100 mm; Scanning range: 10 mm |
| Roughness RMS Repeatability | 0.008 nm |
| XY Stage Range | 100 mm × 100 mm @ fully motorized |
| Tip-tilt Stage | ±3° pitch adjustment @ fully motorized |
| Weight | 75 kg |
| Dimensions | 516 mm × 430 mm × 550 mm |
| Environmental Requirements | Recommended ambient temperature 23℃, humidity20% - 50% |
| White Light LED, Spectral Range | 420-700 nm |
