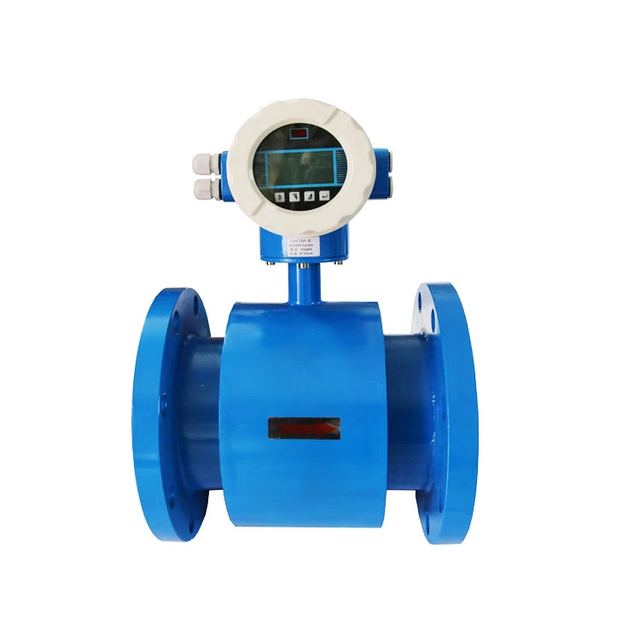

Sell Liquid Magnetic Flow Meter Digital Transmitter
Overview
Sell Liquid Magnetic Flow Meter Digital Transmitter, listed under Flow Transmitters by Henan Junyuan Automation Equipment Co., Ltd in Zhengzhou, Henan. Published figures include max flow rate 15m/s, fluid conductivity >5μS/cm and caliber DN6-DN3000.
Technical specifications
| Max flow rate | 15m/s |
|---|---|
| Fluid conductivity | >5μS/cm |
| Nominal pressure | 0.6Mpa,1.0Mpa,1.6Mpa,4.0Mpa(customized for high |
| Caliber | DN6-DN3000 |
| Liner material | PTFE,PFA,F46,Neoprene ,Polyurethane |
| Electrode | SUS316, Hastelloy B, Hastelloy C,Titanium, Tantalum, Platinum-iridium |
| Ambient humidity | 5-100%RH(Relative humidity) |
| Ambient temperature | -25℃ to +60℃ |
| Measuring range | 1500:1,flow rate <15m/s |
| Protection level | IP65(standard ) ,IP68(Optional ) |
| Ex-proof Mark | ATEX |
| Power supply | 24V ,220V ,3.6V battery |
| Signal output | 4-20Ma , pulse |
| Communication protocol | RS485(Modbus ),Hart |
| Product standard | JB/T9248-1999 electromagnetic flowmeter |
| Lining material | The main performance |
