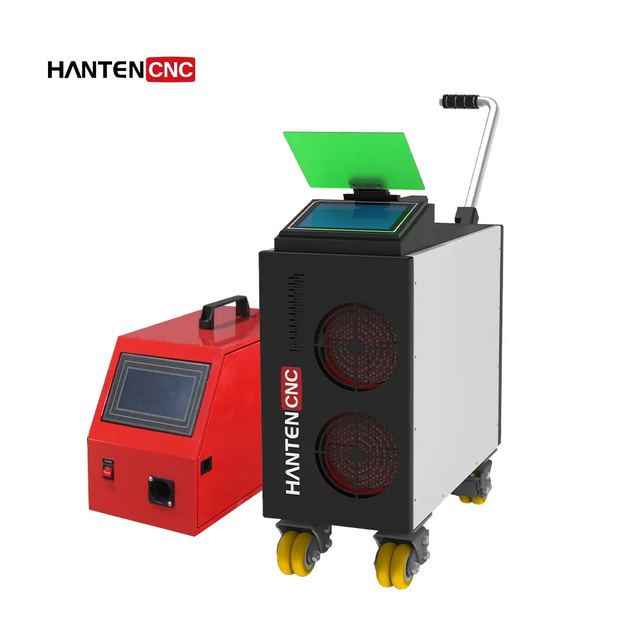

SEAGULL4™ 800W-1500W Handheld Laser Welding Machine
Model HTW800
Overview
SEAGULL4™ 800W-1500W Handheld Laser Welding Machine supplied by HANTENCNC. Key published specifications: Laser Source Brand JPT / MAX; Laser wavelength 1064nm; Laser power 800W; Working voltage 220V Single Phase. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Source Brand | JPT / MAX |
|---|---|
| Laser wavelength | 1064nm |
| Laser power | 800W |
| Working voltage | 220V Single Phase |
| Fiber length | 10M/15M/Maximum20M |
| Operating Mode | Continuous Welding |
| Operating System | Handheld Welding System |
| Scanning Speed | 2-6000 mm/s |
| Scanning Width | 0-8 mm |
| Cooling system | Air-cooling |
| Welder dimensions | 680*363*697mm |
| Laser Welding Machine Weight | 60KG |
| Net Weight (Welding Gun Body) | 0.7KG |
