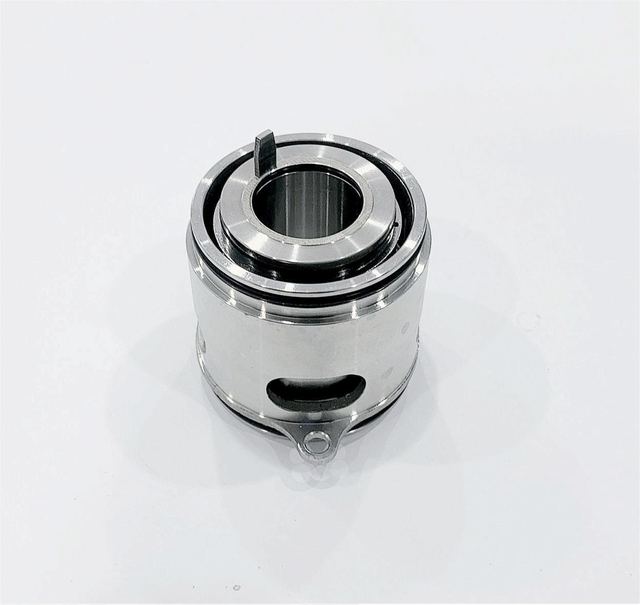

SE-22MM 32mm GLF Cartridge Mechanical Seal for SE SL Pump with Pins
Model JR GLF-13 22mm 32mm
Overview
SE-22MM 32mm GLF Cartridge Mechanical Seal for SE SL Pump with Pins supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification ISO9001; Style Mechanical Seal; Material SIC SIC FKM; Size GLF-SE-22mm 32mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Style | Mechanical Seal |
| Material | SIC SIC FKM |
| Size | GLF-SE-22mm 32mm |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Type | For Grundfos Pump 22mm 32mm |
| Temperature | -30℃ To 200℃, Dependent On The Elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Secondary Seal | NBR, EPDM, FKM, PTFE |
| Performance Capabilities | Temperature |
