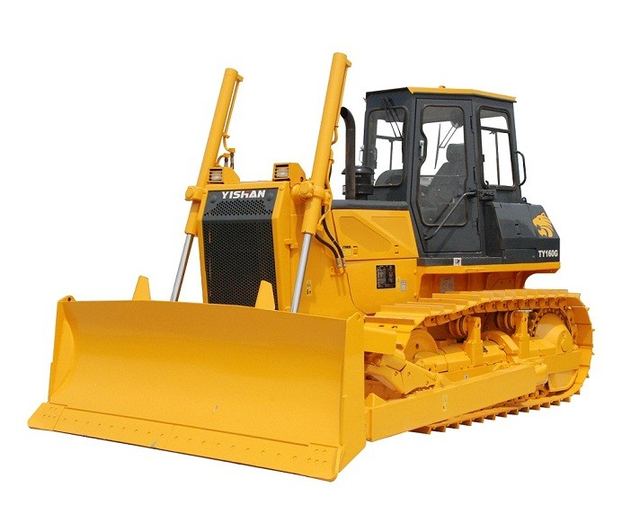

SD160 crawler bulldozer TY160 bulldozer with 160hp engine power
Model TY160
Overview
SD160 crawler bulldozer TY160 bulldozer with 160hp engine power supplied by BENE Machinery Co., Ltd. Key published specifications: Certification ISO9001; Engine Cumins; Operating Weight (kg) 17400 17700 17900 Blade Capacity (m3) 4.5 4.3 8.6; Operating Weight (kg) 400 400 400 Blade Width X Height(mm) 3416×1145/3970×1037/4064×1386. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Engine | Cumins |
| Operating Weight (kg) 17400 17700 17900 | Blade Capacity (m3) 4.5 4.3 8.6 |
| Operating Weight (kg) 400 400 400 | Blade Width X Height(mm) 3416×1145/3970×1037/4064×1386 |
| Min.Turning Radius (m) 3.2 3.2 3.2 | Max.Lift (mm) 1110 1095 1095 |
| Ground Pressure (MPa) 0.069 0.070 0.071 | Max.Depth (mm) 530 545 545 |
| Track Gauge (mm) 1880 1880 1880 | Max.tilt Adjustment (mm) ≥860 ≥400 ≥400 |
| Grade Ability (°) 30 30 30 | Capability(m3/H)(Theoretical value 40m) 247 / 247 / 260 |
| Travel Speed | Weight Of Blade (kg) 2350 2450 2560 |
| 1st 2nd 3rd | COOLANT AND LUBRICANT CAPACITY |
| Cumins:6-139.7X 152.4 | 3-Shank Ripper: |
| Engine Model | CUMINS NT855-C280S10/SHANGCHAIi SC11CB184G2B1 |
| Flywheel Horsepower | 160 HP (131 kW)/1850RPM |
| Operating Weight(Straight-Tilt Dozer) | 17400kg |
| Cylinder Number-BoreX Stroke (mm) Shangchai | 6-120.6X 152.4 |
| Min. Fuel Consumption (g/kW.h) Cumins | 212 Shangchai:223 |
| Max.Torque (Nm/rpm) Cumins | 877/1250 Shangchai:830/1100 |
| engine power | 178KW |
| certificate | ISO9001 |
