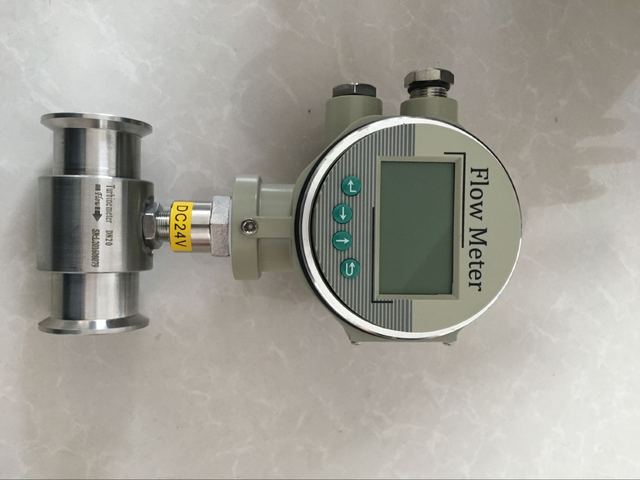

Sanitary Magnetic Turbine Flow Meter for Food, Beer, Milk & Beverage
Model LDG
Overview
Sanitary Magnetic Turbine Flow Meter for Food, Beer, Milk & Beverage, listed by Tianjin U-ideal Instrument Co., Ltd in Tianjin. Accuracy class ± 1%R ,±0.5%, fluid temperature -120~+ 12 0ºC and power supply +12VDC,+24VDC(selective) are among the specifications published.
Technical specifications
| Meter diameter and connection method | 4,6,10,15,20,25,32,40 apply thread connection |
|---|---|
| Accuracy class | ± 1%R ,±0.5% |
| Material | 304 stainless steel,316(L)stainless steel and others |
| Fluid temperature | -120~+ 12 0ºC |
| Environment | Temperature-10~+ 5 5ºC,relative humidity5%~90%,air pressure86~106Kpa |
| Output signal | Impulse signal,low leve l≤0.8V high level ≥8V |
| Power supply | +12VDC,+24VDC(selective) |
| Signal transmission line | STVPV3*0.3(Three line system)or 2*0.3(2-line system) |
| Transmission distant | ≤ 1000m |
| Signal wire connection | Inner thread M20*1.5 |
| Explosion proof class | ExdIIBT6 |
| Protection class | IP65/IP68 |
| Nominal pressure | 1.6Mpa;2.5Mpa;4.0Mpa;6.4Mpa etc |
| bearing material | Stainless steel;ceramic;hastelloy etc |
| Application | liquid,oil,gas,etc. |
| Accuracy | +/-0.2% (Customize), +/-0.5% |
| Body material | SS304;SS316;SS316L |
| Output | Pulse;4-20mA +Hart/RS485 |
| Standard | SGS |
| Production Capacity | 3000PCS/Month |
| Medium temperature | -20~+120º C/-20-450℃ |
| Ambient temperature | -20~+55º C |
