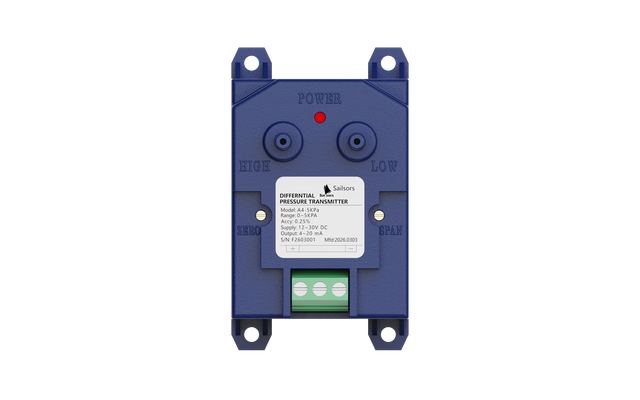

Sailsors A4 Differential Pressure Transmitter
Overview
Sailsors A4 Differential Pressure Transmitter, listed by Sailsors in Beijing. Published figures include a4-2.5kpa 0 ~ 2.5 kPa, a4-100kpa 0 ~ 100 kPa and a4-200kpa 0 ~ 200 kPa.
Technical specifications
| A4-2.5KPa | 0 ~ 2.5 kPa |
|---|---|
| A4-100KPa | 0 ~ 100 kPa |
| A4-200KPa | 0 ~ 200 kPa |
| A4/Z-120Pa | ±60 Pa |
| A4/Z-250Pa | ±125 Pa |
| A4/Z-500Pa | ±250 Pa |
| A4/Z-1KPa | 0 ~ 1 kPa |
| A4/Z-2.5KPa | 0 ~ 2.5 kPa |
| A4/Z-100KPa | 0 ~ 100 kPa |
| A4/Z-200KPa | 0 ~ 200 kPa |
| Stability | ±0.25% FS/year |
| Output Signal | 4–20 mA, 2-wire |
| Maximum Pressure | Ranges ≤ 5 PSI: Max 15 PSI |
| Ranges ≤ 5 PSI | Max 15 PSI |
| Ranges ≤ 4″ w.c. | 1.0% FS |
| Ranges ≤ 5″ w.c. | 0.5% FS or 0.25% FS (optional) |
| Compensated Range | 15°F to 120°F (-10°C to 50°C) |
| Operating Range | -10°F to 155°F (-25°C to 70°C) |
| Thermal Effect | ±0.028% FS/°F |
| Loop Resistance | 250 Ω @ 24 VDC |
| Power Supply | 12–30 VDC |
| Housing Material | ABS Plastic |
| Electrical Connection | Screw terminals |
| Process Connection | Push-on connection for 1/8″ I.D. tubing |
